TJM PRO SERIES REMOTE AIR COUPLING KIT

The TJM Remote Coupling Kit is a versatile and convenient solution for anyone looking to mount a pneumatic outlet in a location of their choosing. This kit is designed to supply compressed air to a pneumatic accessory outlet, making it easy to access compressed air in a variety of locations. The kit includes a series of quick-connect pneumatic fittings and a pneumatic hose, which connects to an air tank or compressor. This provides a flexible and convenient way to access compressed air without having to move the air tank or compressor. With its durable construction and precise fittings, the TJM Remote Coupling Kit is an excellent solution for anyone looking to improve the accessibility and convenience of their compressed air system.

SUITS - TJM Pro Series Air Tank-TJM Pro Series Twin Compressor-TJM Pro Series Single Compressor

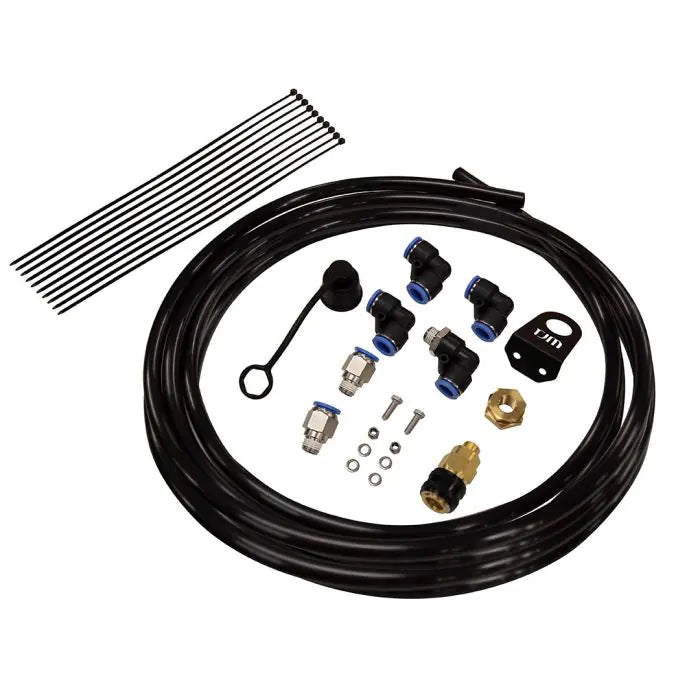

INCLUDED ITEMS

1 x 90° bulkhead bracket
1 x Nitto Female One-Touch Quick Connect Fitting x 1/4"" BSPT Thread
1 x Bulkhead fitting - 1/4"" BSPP
2 x Straight - male 1/4"" BSPT - 12mm OD push-in fitting
2 x M5 x 0.8 x 16 Hex Head bolt SS
4 x M5 x 10 x 1.2 Washer SS
2 x M5 x 0.8 Nyloc Nut SS
1 x 90° Push-in fitting elbow 1/4"" BSPT -12mm OD
3 x 90° Elbow Push-in fitting both ends
10 x Cable Tie (300mm)
1 x Black Dust Cover Nitto Air Fitting
1 x Nylon pneumatic tube 12mm OD - (length - 6m)
