TJM PRO SERIES FASCIA PANEL KIT

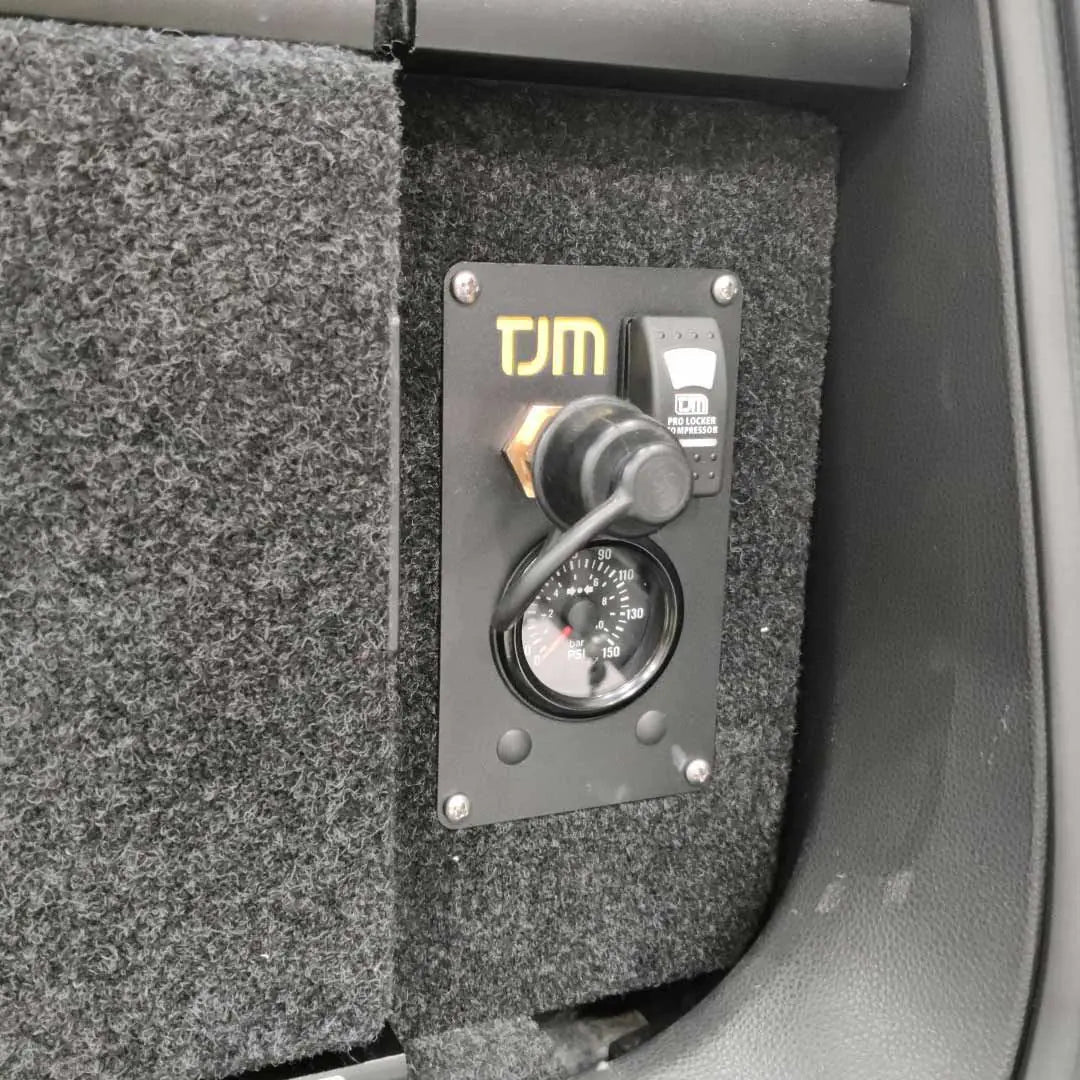

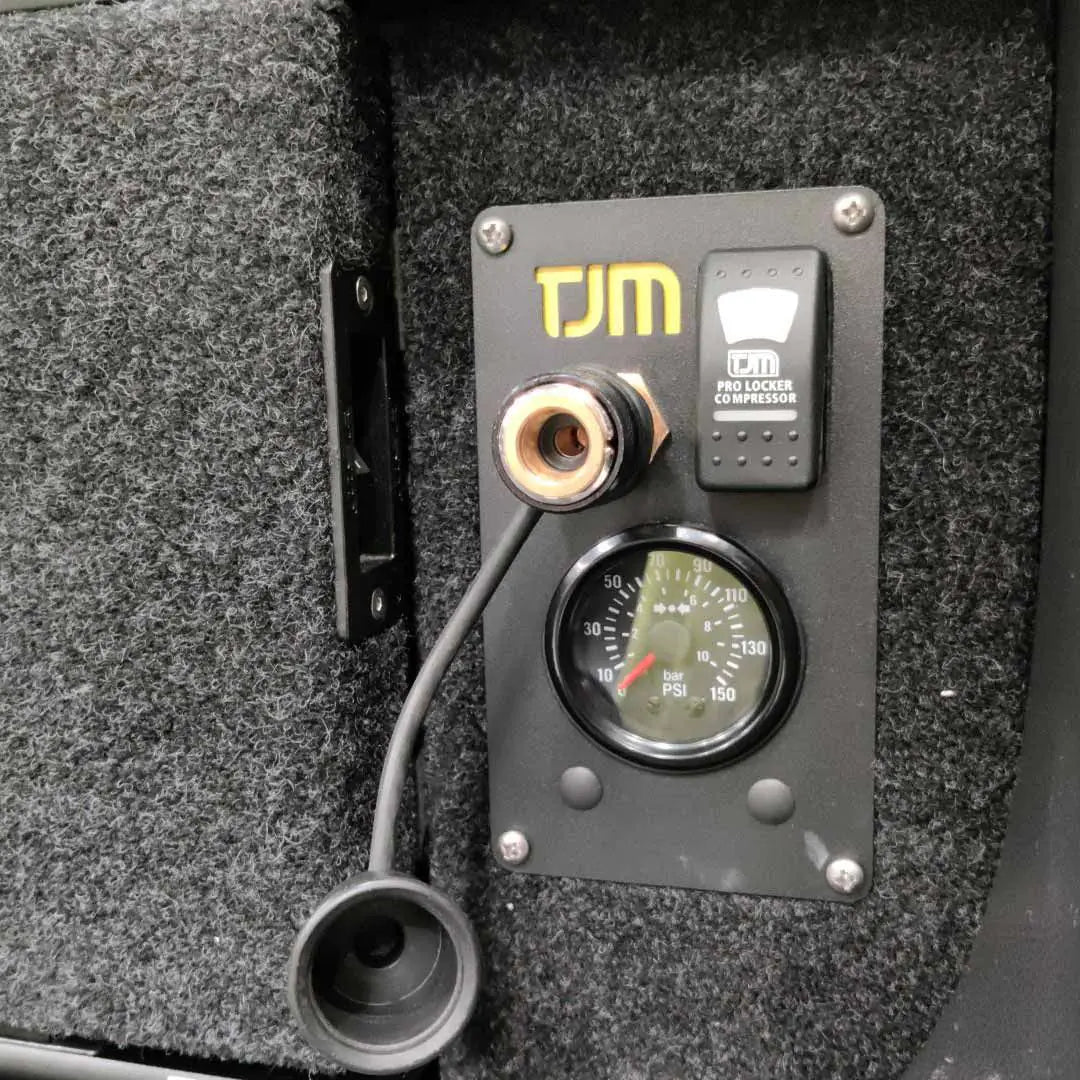

Make accessing your TJM Pro Series Air Compressor even easier with the Pro Series Fascia Panel Kit. Designed to allow you to mount a pneumatic outlet, the Fascial Panel Kit turns up the dial on convenience and accessibility allowing you to check and monitor system pressure away from the air compressor. It even has provisions for installing a rocker switch and 2 x Schrader valve fittings, so you can activate the compressor and adjust your air bag suspension at a moment's notice.

Suits: TJM Pro Series Air Tank TJM Pro Series Twin Compressor TJM Pro Series Single Compressor

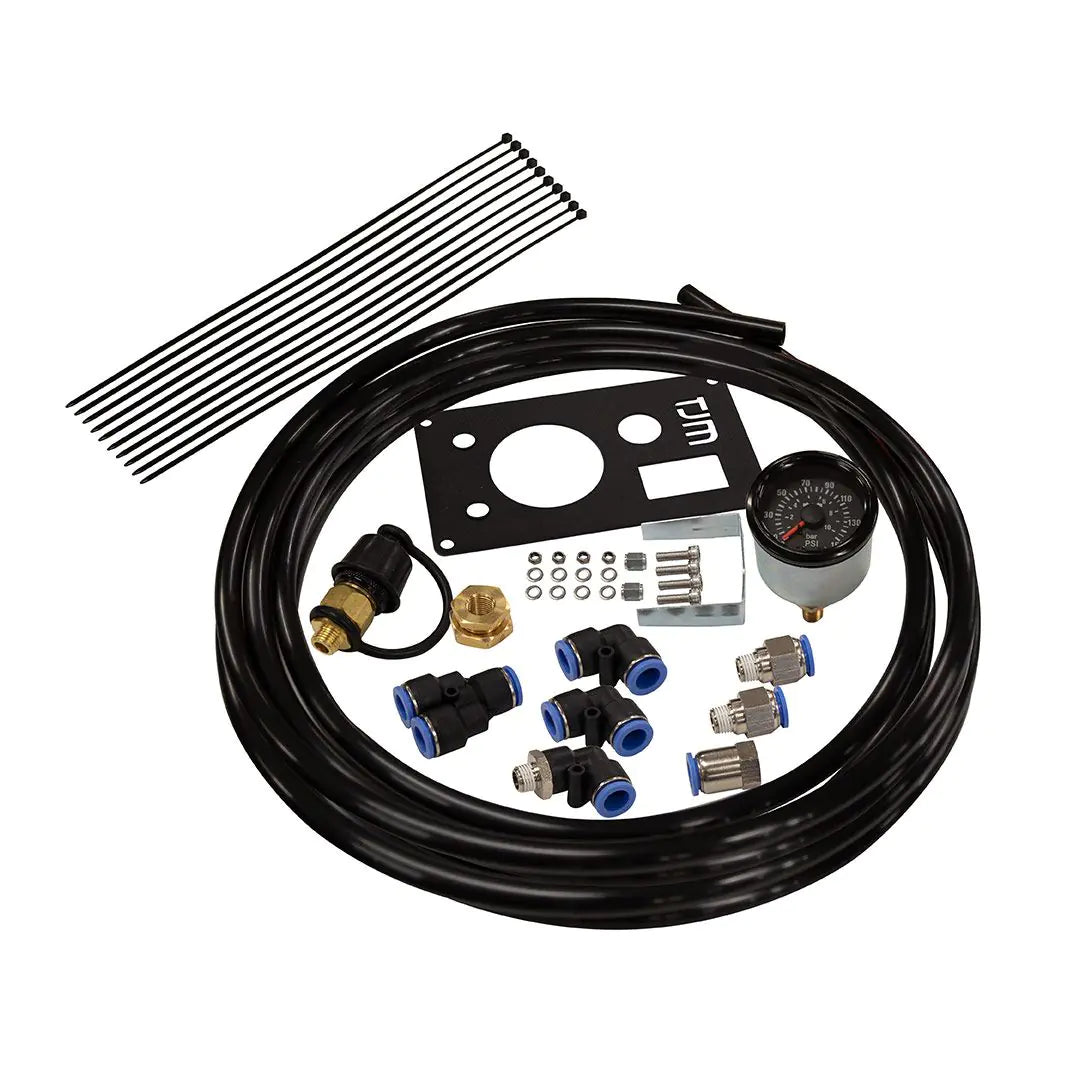

KIT INCLUDES

• 1 x Fascia Panel Bracket
• 1 x Nitto Female One-Touch Quick Connect Fitting x 1/4"" BSPT Thread

• 1 x Bulkhead fitting - 1/4"" BSPP
• 2 x Straight - male 1/4"" BSPT - 12mm OD push-in fitting
• 4 x M5 x 0.8 x 16 Allen Head Cap Screw SS
• 8 x M5 x 10 x 1.2 Washer SS
• 4 x M5 x 0.8 Nyloc Nut SS
• 1 x 90° Push-in fitting elbow 1/4"" BSPT -12mm OD
• 2 x 90° Elbow Push-in fitting both ends
• 10 x Cable Tie (300mm)
• 1 x Analogue Pressure Gauge 0-150PSI with Mounting Kit
• 2 x 8mm Blanking Plug
• 1 x Push-in fitting 12mm OD - Y-Union
• 1 x 1/8"" NPT Female to 12mm Push Fitting
• 1 x Black Dust Cover Nitto Air Fitting
• 1 x Nylon pneumatic tube 12mm OD - (length - 6m)
• *Note: Rocker switch is not included in kit.
