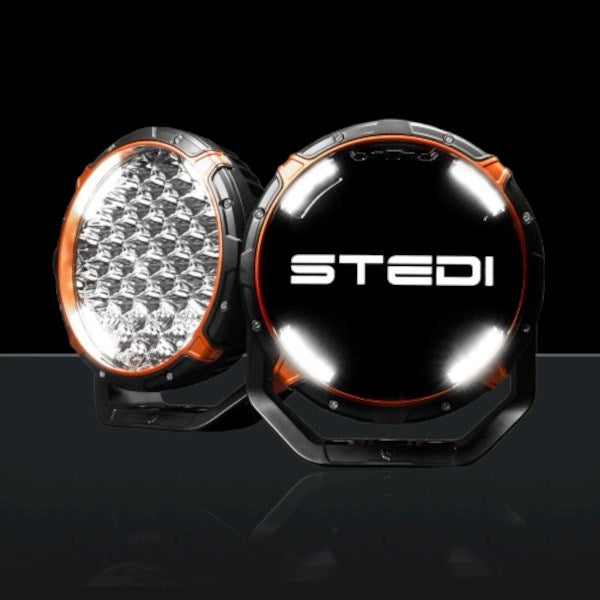

STEDI TYPE-X PRO PLUS 8.5" DRL ASSEMBLED KIT

STEDI TYPE-X PRO PLUS 8.5" DRL ASSEMBLED KIT

Regular price $799.00 AUD
Regular price Sale price $799.00 AUD
Sale Contact us for availability

SKU:ST-01-PRP-803

THE NITTY GRITTY.

The Rugged style in the Type-X™ PRO PLUS series blends the iconic design cues of the original Type-X™ PRO with modern customisation. Featuring the rugged bezel, fascia (available in up to 9 colour options), and matching covers, it delivers a bold, timeless look. Optional shoulder trims add an extra layer of personalisation to suit your build.

Beneath its classic aesthetic lies cutting-edge performance. Equipped with an integrated DRL, the Rugged option delivers serious output, throwing light over 1.5km. Engineered for both on- and off-road use, it offers the same uncompromising light performance and durability the PRO PLUS is known for — bringing the best of both worlds to every drive.

Please Note: That this product kit comes pre assembled in the box

WHAT'S INCLUDED

  • 2 x Type-X™ Pro Plus Rugged DRL LED Driving Light Kits
  • 2 x Type-X™ Pro Plus Fascia Rugged Orange Rings
  • 2 x Type-X™ Pro Plus Fascia Rugged Grey Rings
  • 2 x Type-X™ Pro Plus Rugged DRL STEDI Covers
  • 2 x Type-X™ Pro Plus Rugged Orange Shoulder Trim
  • 2 x Type-X™ Pro Plus Rugged Grey Shoulder Trim
  • 1 x Evo Fascia Key
  • 1 x High Beam Triggered Wiring Harness

TECH SPECS

OPTICAL BEAM (DRL) Combo Beam (36x Spot | 9x Flood | 4x DRL)
TESTED LUMENS (DRL) 29,664lm (Pair)
1 LUX @ (DRL) 1540 Metres (Pair)
CANDELA (DRL) 1,846,240cd (Pair)
AMP DRAW (DRL) 15.9 @ 12V
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5000 Kelvin
VOLTAGE COMPATIBILITY 10 - 30V DC
WEIGHT (EACH – DRL) 3.65kg (Each)
OPERATING VOLTAGE -40°C to 60°C
View full details
