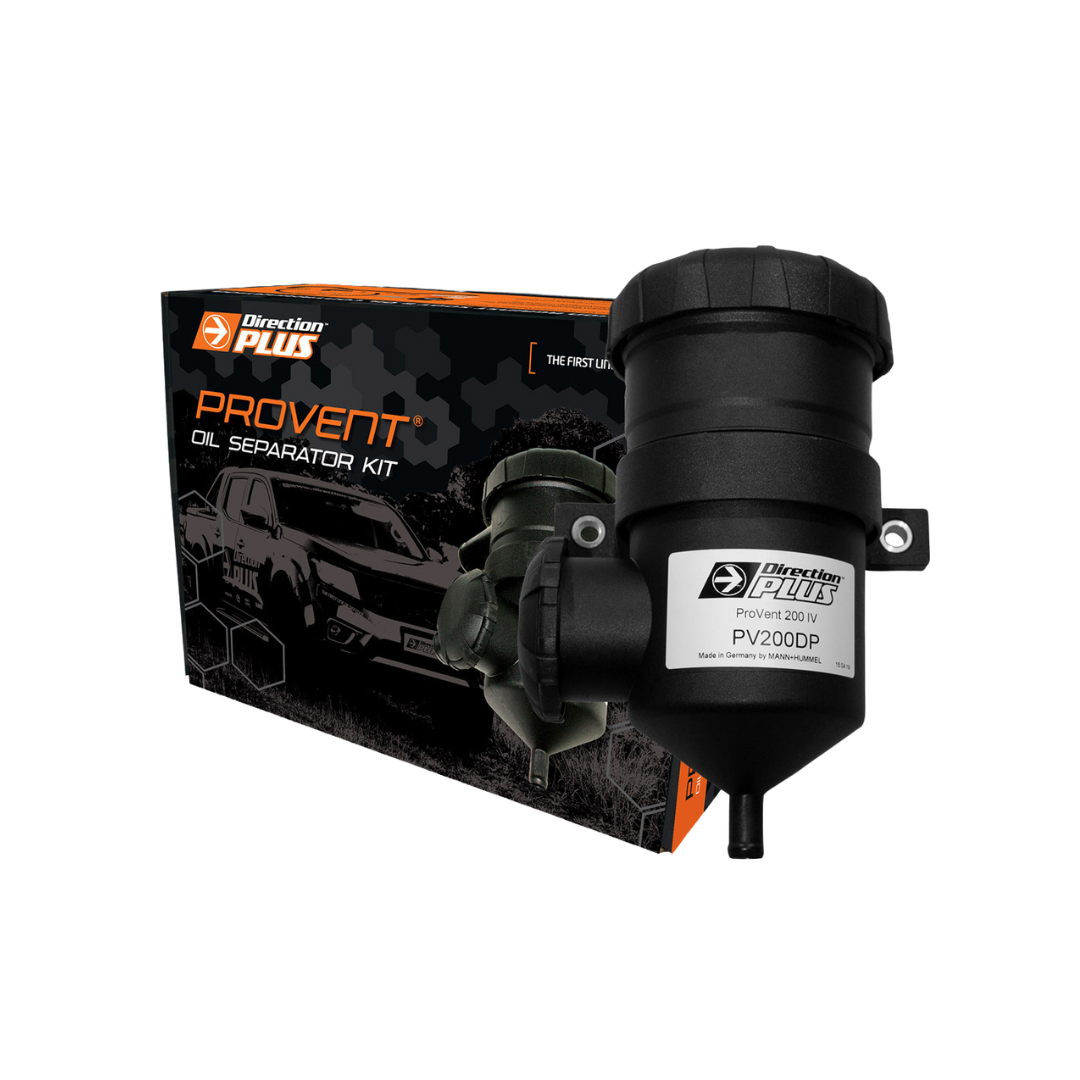

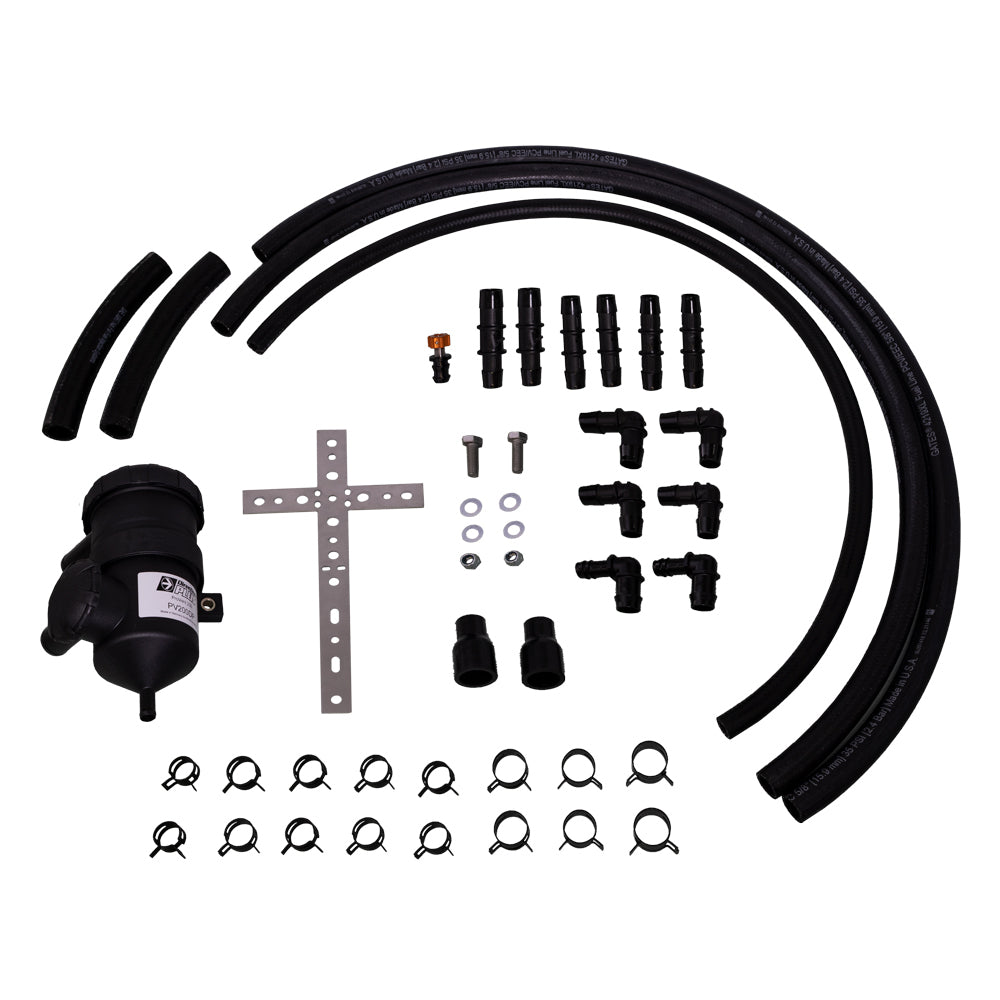

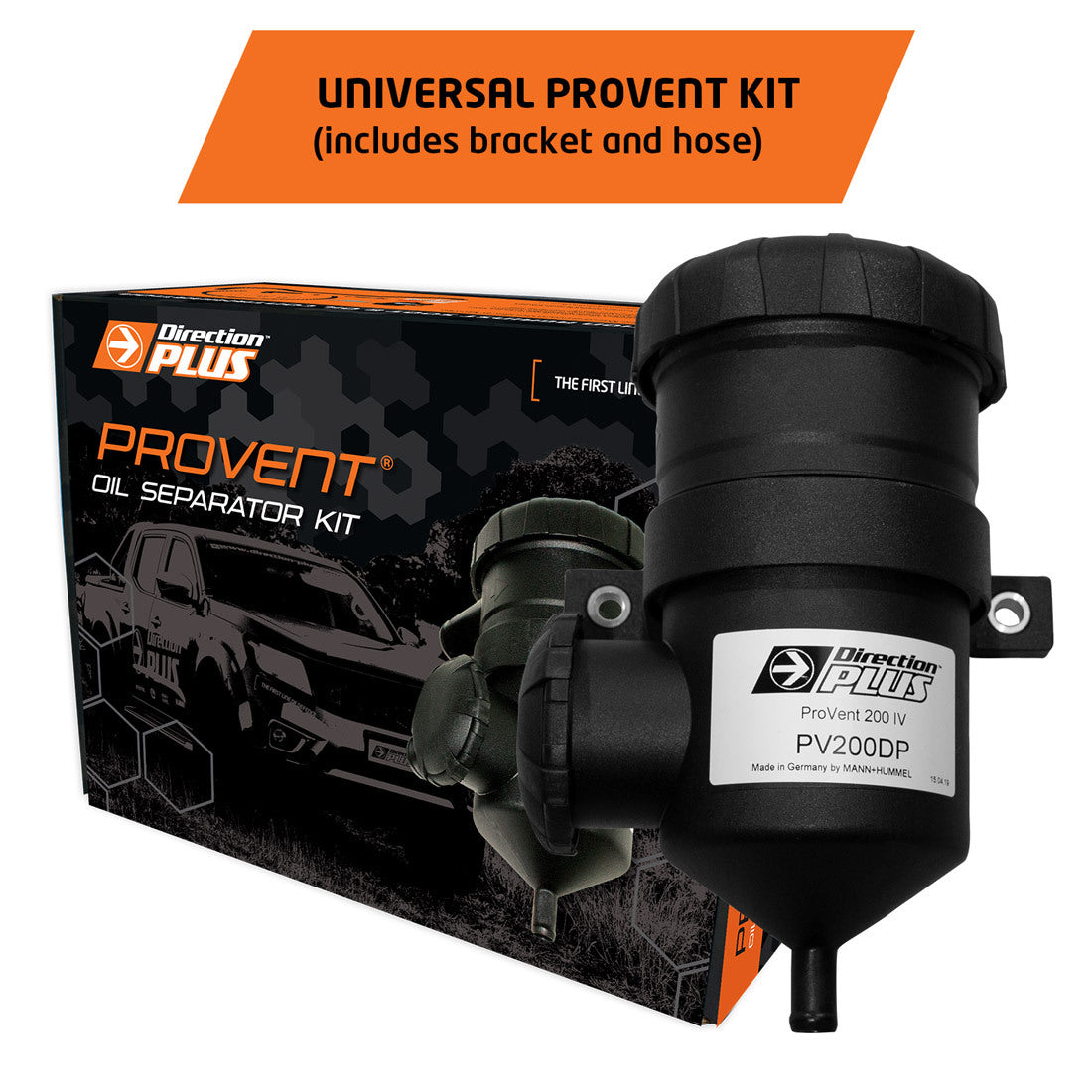

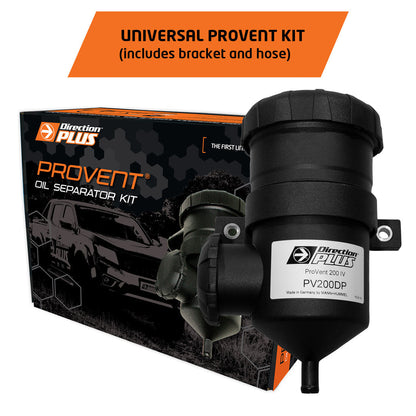

Provent Oil Separator Kit (Universal 200 kit)

PROTECT YOUR DIESEL ENGINE AGAINST OIL & SOOT CONTAMINATION

Direction-Plus™ ProVent® oil separator kit protects your modern diesel engine by substantially reducing the amount of oil entering the engine from blow-by gas in the crankcase ventilation system.

HOW IT WORKS

Direction-Plus™ ProVent® system is specifically designed to separate and redirect oil & air from blow-by gas produced from within the crankcase which also provides the option of returning the oil back to the sump.

For the ultimate defence against oil and soot contamination, investing in a Direction-Plus™ ProVent® oil separator kit will protect your investment 24 hours a day, 365 days a year.

BENEFITS OF FITTING A PROVENT OIL SEPARATOR KIT:

• Prevents oil and soot contamination entering the clean air intake
• Excellent protection for turbocharger
• Minimises oil consumption*
• Prevents oil buildup in intercoolers
• Regulates crankcase pressure
• Keeps critical engine components clean
• Reduces exhaust smoke and odours

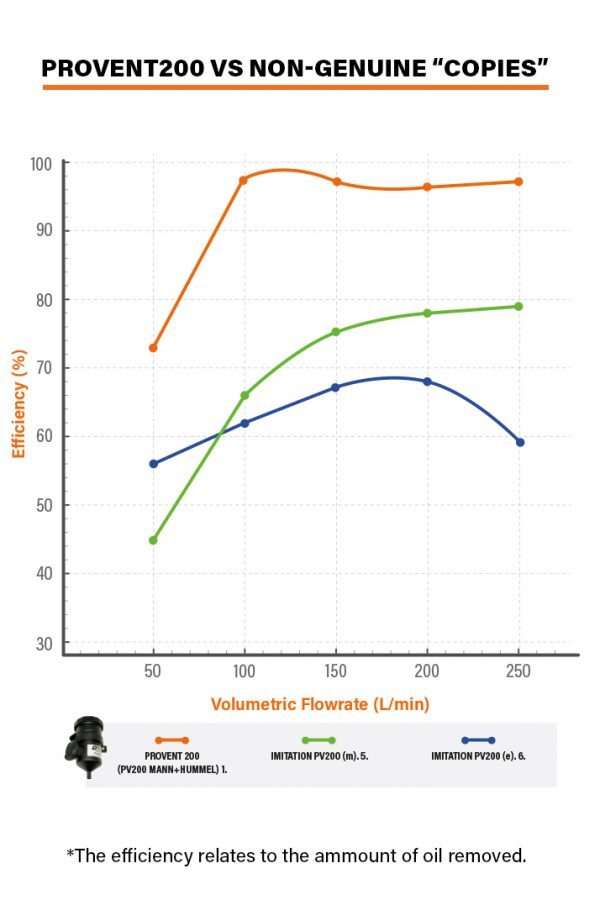

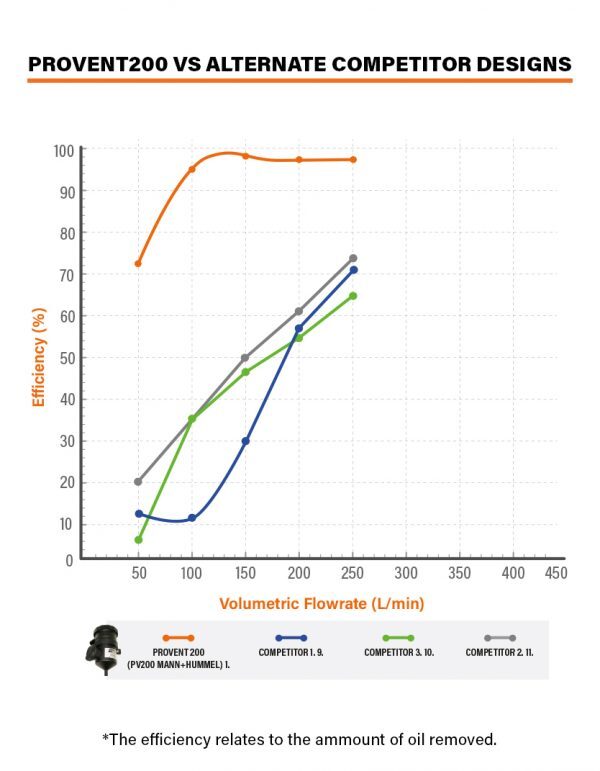

• 98% oil separation efficiency
• Saves you money

*Only in installations where the oil is returned to the sump

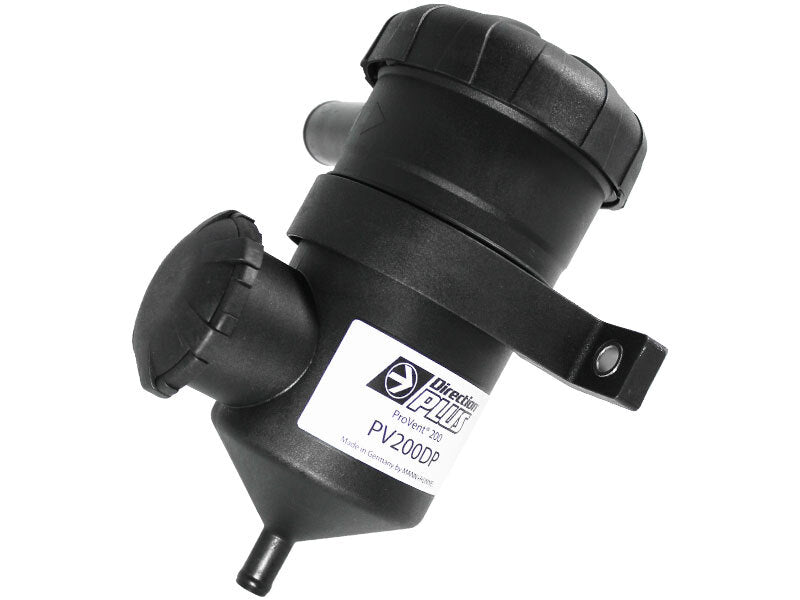

ProVent200 : The ProVent 200 is a compact crankcase ventilation unit for engines up to 200 kW and is characterised by the following advantages:

• Very compact design
• Up to 200 l/min blow-by gas
• Available with high-efficiency or ultra-efficiency medium
• Integrated pressure regulation for crankcase
• Also available with bypass valve (integrated in seperate element)
• Tool-free element replacement with protection against incorrect insertion through turn-lock mechanism and element with integrated handle
• Suitable for use with open or closed CCV system
• Check valve for oil return available (recommended)
