MISTER HITCHES BALL MOUNT H/DUTY 3650KG

Short Shank

• REVERSIBLE - RAISES OR LOWERS BALL TO THE RIGHT LEVEL FOR TOWING
• BLACK POWDER COATED FINISH
• ROBOTIC WELDED FOR CONSISTENT QUALITY
• CNC MACHINED FOR MAXIMUM ACCURACY
• FITS 2" X 2" TOWBAR RECEIVERS
• EXTRA HEAVY DUTY 25MM THICK X 75MM WIDE BALL PLATFORM
• FULLY REVERSIBLE - DROP OR RISE CONFIG.
• D035 COMPATIBLE
• STONE STOMPER COMPATIBLE
• MM PAJERO SPORT / FORD RANGER SHALLOW RECEIVER COMPATIBLE
• ADR62 COMPLIANT

GROSS TRAILER WEIGHT: 3650KG

TONGUE WEIGHT: 365KG

BALL HOLE SIZE: 7/8"

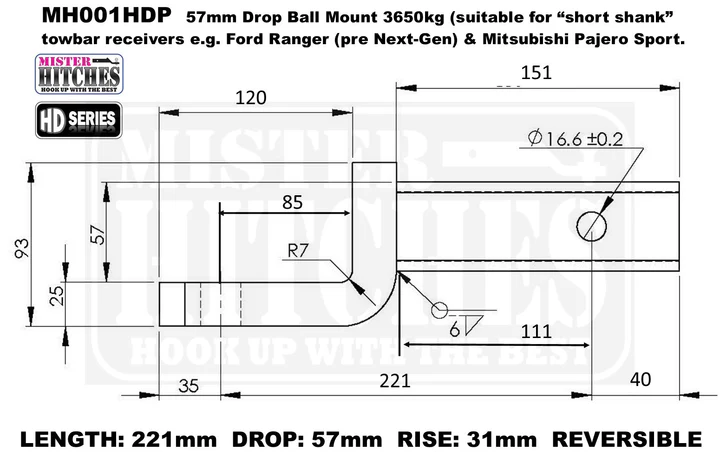

PIN HOLE TO END OF SHANK: 40MM (Suits MM Pajero Sport Shallow Receiver)

DROP: 57MM

RISE: 31MM

LENGTH: 221MM (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE)

PIN HOLE TO BALL PLATFORM: 111mm
