TOYOTA PRADO 150 Series KIT 2 TWIN COMP BRACKET

TOYOTA PRADO 150 Series KIT 2 TWIN COMP BRACKET

$393.70 AUD
$393.70 AUD
Sale Contact us for availability

JBA-CB212KIT2

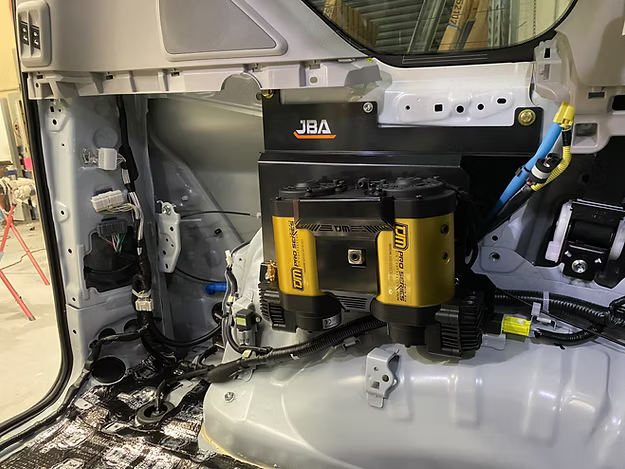

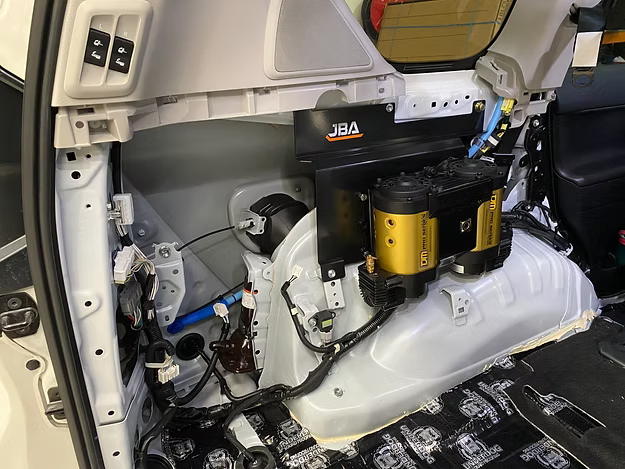

Toyota Prado 150 Series JBA compressor mount bracket enables a concealed fit for the TJM heavy duty twin compressor behind the passenger side rear quarter panel.

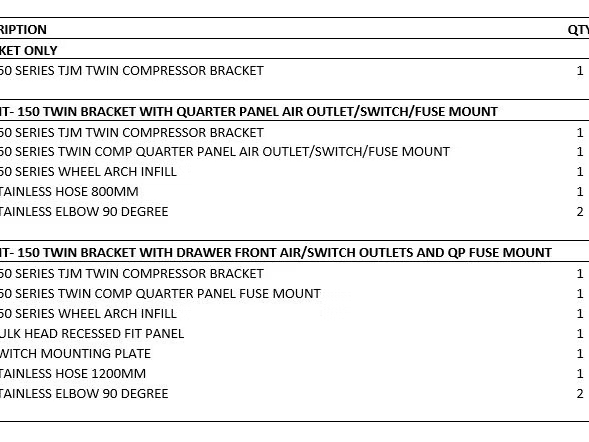

IN THE KIT

1x 150 SERIES TJM TWIN COMPRESSOR BRACKET

1x 150 SERIES TWIN COMP QUARTER PANEL AIR OUTLET/SWITCH/FUSE MOUNT

1x 150 SERIES WHEEL ARCH INFILL

1x STAINLESS HOSE 800MM

2x STAINLESS ELBOW 90 DEGREE

FEATURES

  • Made from 2mm powder coated steel
  • Supplied with stainless steel fasteners
  • No drilling required- all mounting points pick up on existing body points

VEHICLE FITMENT NOTES

  • Mounts behind the passenger side quarter panel
  • Suits all models 2009-2022 and all variants except models with subwoofer (can still be fitted to models with subwoofer if subwoofer is removed)
  • Will not fit GX/5 seat models
  • Will not fit models with 3rd row electric seats
  • Suggested Fit Time- 2.5 hours plus wiring (allow additional 1-2 hours if drawers fitted to remove and re-fit)
  • Fitment of TJM 5L air tank not possible due to space restrictions
  • No drilling required- all mounting points pick up on existing body points.

PARTS NOTE: Compressors & Air Tanks Sold Separately
