TOYOTA LANDCRUISER 300s KIT 3 SINGLE COMPRESSOR BRACKET

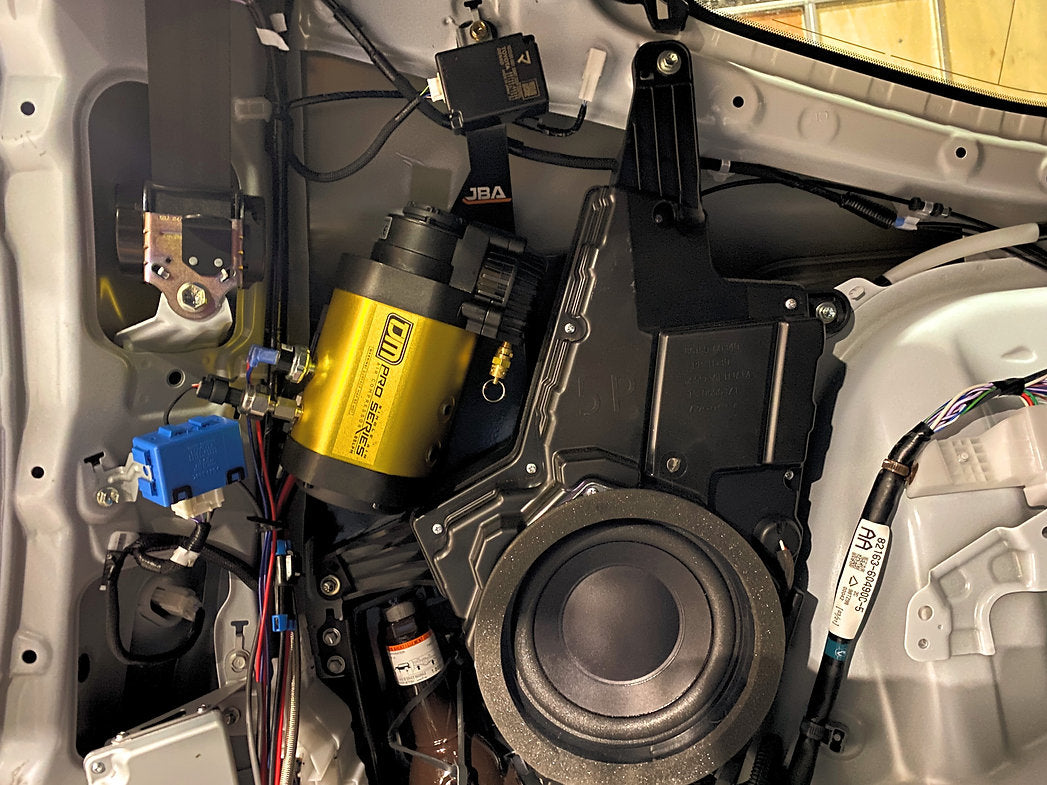

The JBA 300 series single compressor bracket enables a concealed fit for the TJM heavy duty single compressor.

IMPORTANT FITTING NOTES

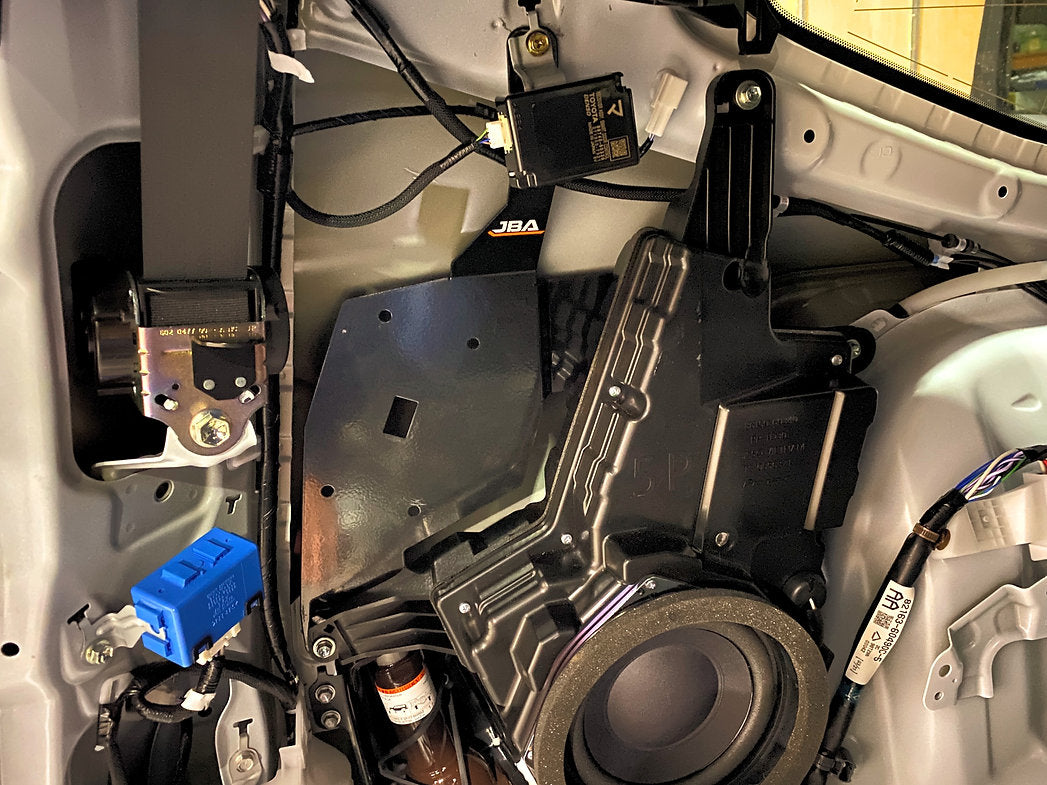

• Mounts behind the passenger side quarter panel
• Enables rear subwoofer to be retained (if fitted to vehicle) on VX models.
• DOES NOT FIT WITH 14 SPEAKER ENTERTAINMENT MODELS SAHARA, SAHARA ZX AND GR SPORT MODEL) as subwoofer is larger.
• Rear storage compartment on GXL needs to be removed to fit bracket (front cover is retained).
• No drilling required- all mounting points pick up on existing body points

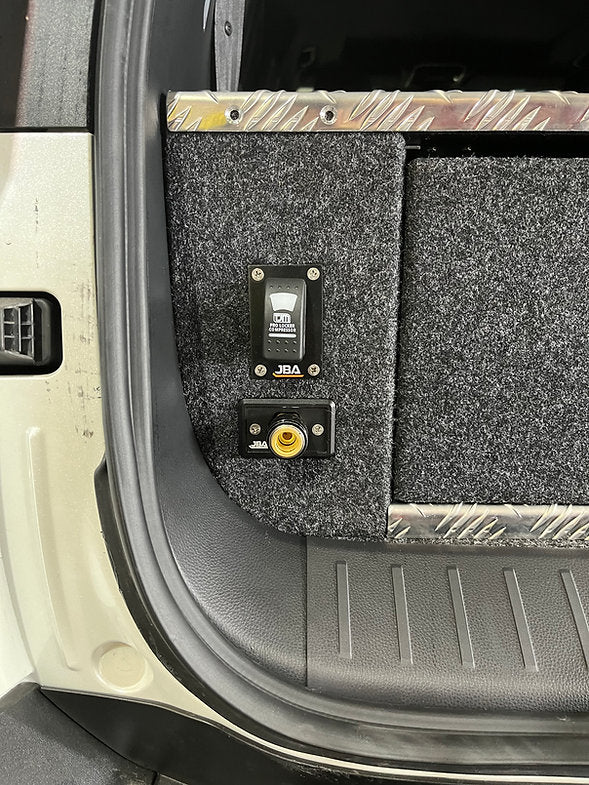

• Air/Switch Outlet Location - On Drawer Front

If you have the larger subwoofer model or if you want to fit a TJM twin compressor and a tank, the JBA-CB231 bracket can be used but does still require the rear subwoofer to be removed.

KIT CONTENTS (3)

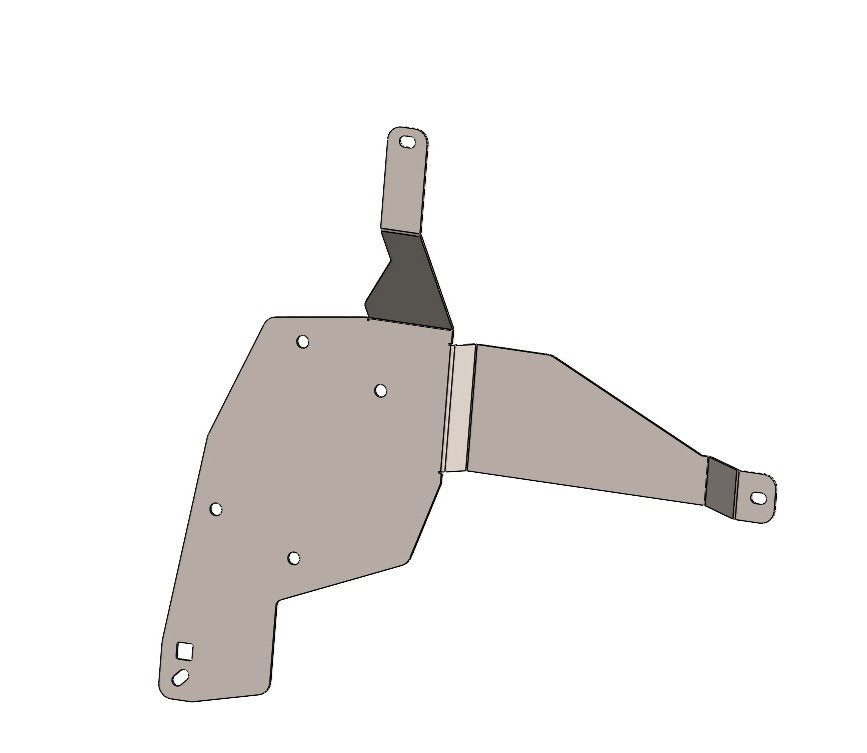

• Bracket (Retain Subwoofer)
• Switch Mount
• 800mm Stainless Hose
• 45 degree Stainless Elbow
• 90 degree Stainless Elbow
• Bulk Head Fitting

PLEASE NOTE: Compressors & Air Tanks Sold Separately
