TOYOTA LANDCRUISER 200s TWIN COMPRESSOR BRACKET

CONTENTS

• JBA 200 SERIES TWIN COMPRESSOR BRACKET

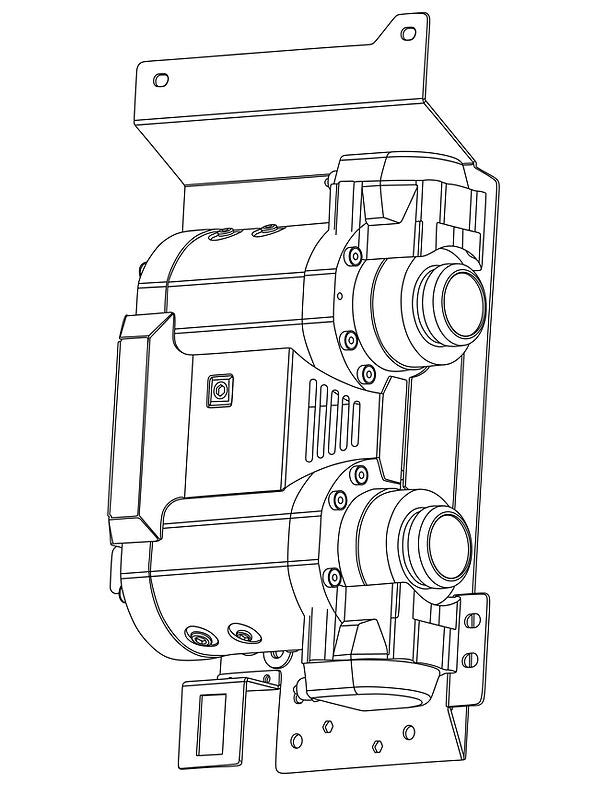

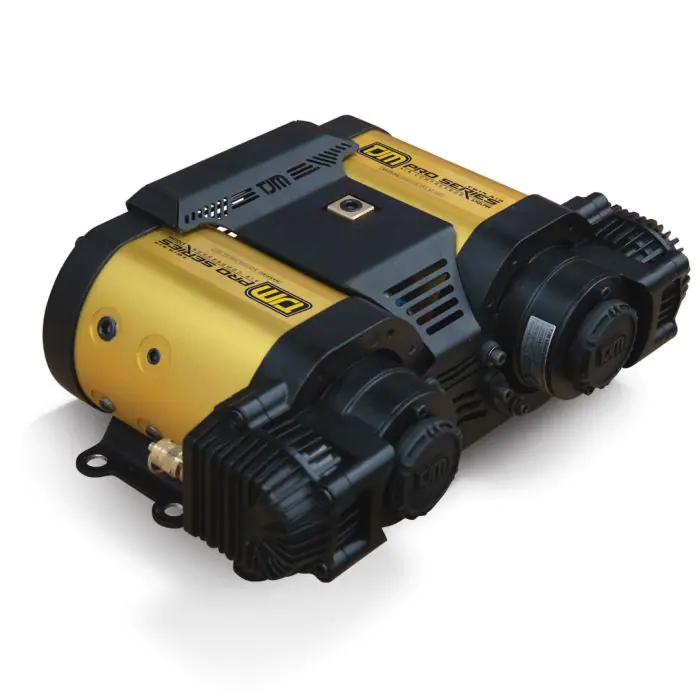

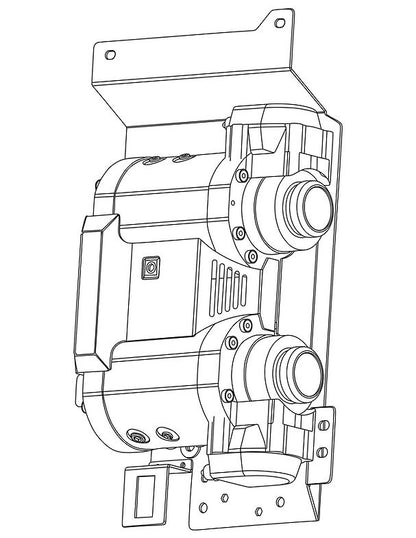

The JBA 200 series double compressor bracket enables a concealed fit for the TJM heavy duty twin compressor behind the drivers side rear quarter panel.

JBA also offer a range of complementary products for mounting your power switch and air outlet depending on your budget and desired access preferences. We have pre-packaged kits that allow for the 3 most popular mounting options which include

• On the compressor/compressor bracket (slightly obstructed access)
• In the quarter panel on a dedicated bracket (KIT2 easy access)
• On a drawer system front panel (KIT3 easiest access if drawers fitted)

JBA also offer a tank bracket to enable the fitment of TJM 5L tank (JBA-CB301 available separately). All air outlet/switch options listed above will fit with the tank bracket.

The JBA double compressor bracket allows as standard the ability to mount the 2 x ANS-H fuses supplied in the TJM compressor. This allows for easier access to the fuses to check and replace if required.

• Made from 2mm powder coated steel
• Supplied with stainless steel fasteners

Important Fitting Notes

• Suits all models 2007-2021 and all variants
• Mounts behind the drivers side quarter panel
• Jack requires removal for fitment
• No drilling required- all mounting points pick up on existing body points

PLEASE NOTE: Compressors & Air Tanks Sold Separately
