FORD EVEREST 09/22+ KIT5 SINGLE BRACKET COMPRESSOR & TANK BRACKET DRAWER FRONT

CONTENTS

• EVEREST 09/22+ TJM SINGLE COMPRESSOR BRACKET
• BULK HEAD RECESSED FIT PANEL
• SWITCH MOUNTING PLATE
• STAINLESS HOSE 400MM
• STAINLESS HOSE 1200MM
• STAINLESS ELBOW 90 DEGREE

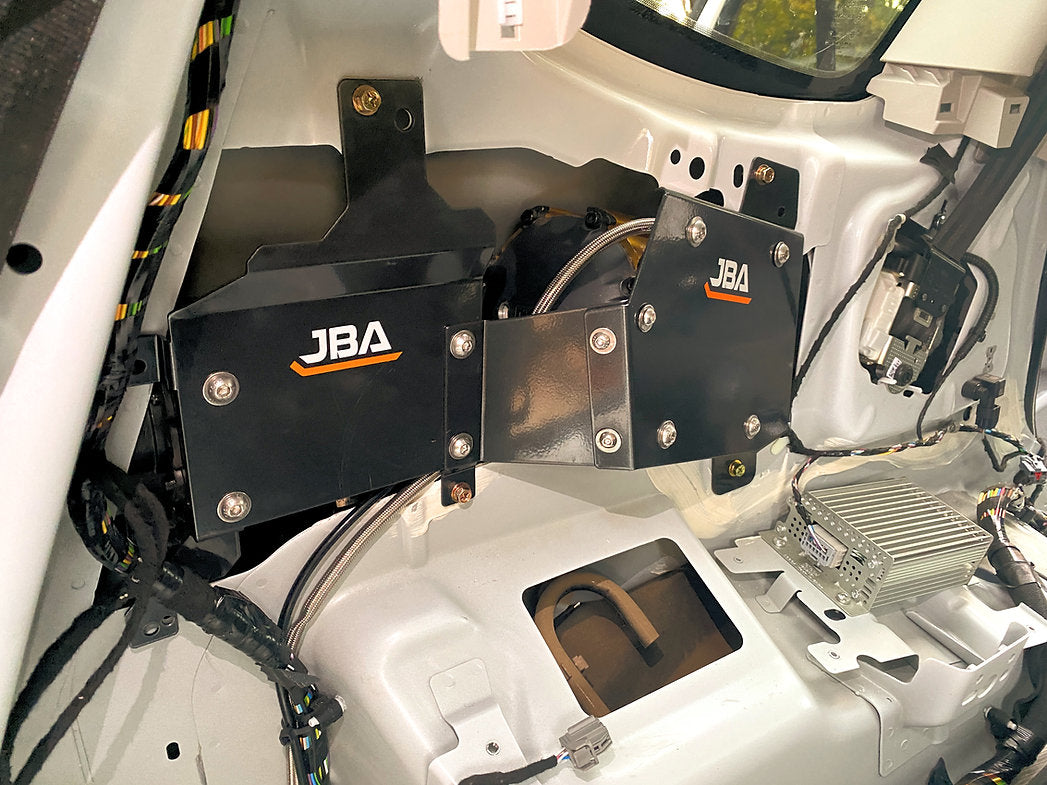

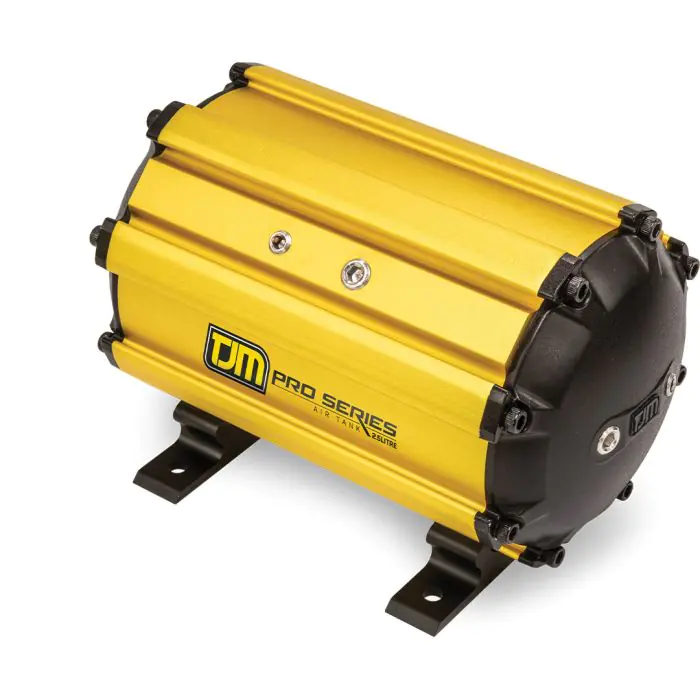

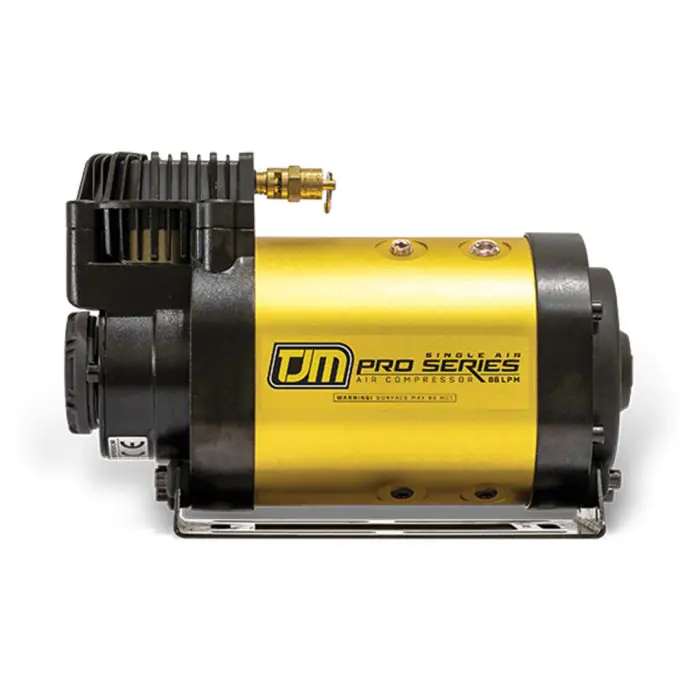

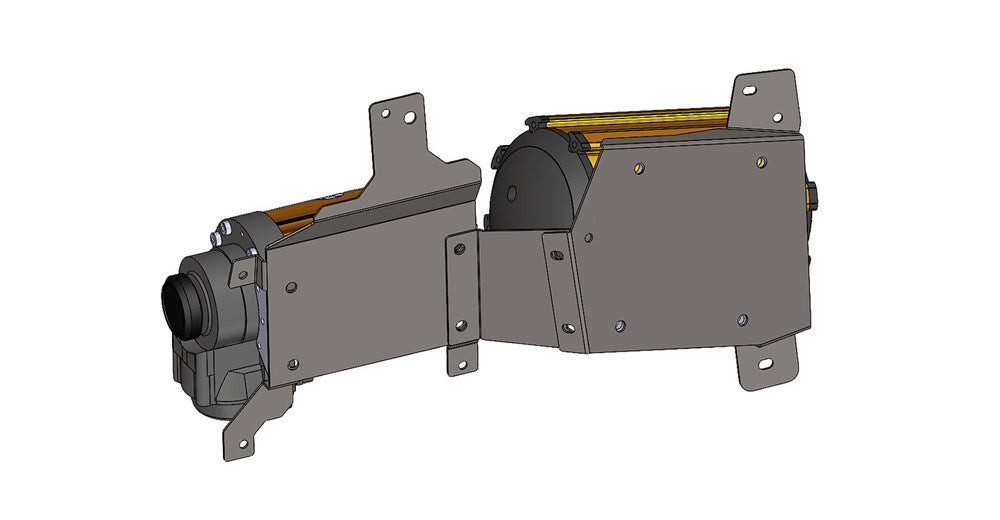

The JBA Everest 09/22+ bracket enables a concealed fit for the TJM heavy duty single compressor behind the passenger side rear quarter panel. JBA also offer the ability to fit the TJM 2.5L air tank with a seperate mounting bracket as an option.

JBA also offer a range of complementary products for mounting your power switch and air outlet depending on your budget and desired access preferences. We have pre-packaged kits that allow for our 2 most popular mounting options which include;

•      In the rear Tool Compartment of the vehicle
•      On a drawer system front panel

JBA bracket features includes

• All Australian designed and manufactured quality
• Made from 2mm powder coated steel
• Supplied with stainless steel fasteners

Important Fitting Notes

• Mounts behind the passenger side quarter panel
• Suits all model variants including models with subwoofer (subwoofer sits next to compressor)
• Subwoofer will need to be removed if fitting optional 2.5L tank mounting bracket.
• Nitto fitting used in images and suggested fit applications not supplied by JBA. It is available through TJM stores part number 013COMPPF01.

PLEASE NOTE: Compressors & Air Tanks Sold Separately
