TOYOTA PRADO 250 BRACKET KIT5 - TJM SINGLE COMPRESSOR & 2.5L TANK WITH DRAWER FRONT AIR OUTLET AND SWITCH

CONTENTS

• COMPRESSOR BRACKET

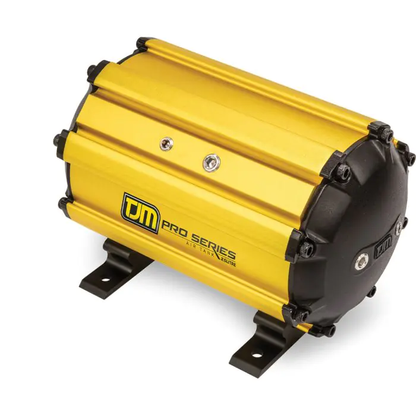

• TJM 2.5L AIR TANK BRACKET
• TJM SLIMLINE TANK END MOUNTING BRACKETS (PAIR)
• BULK HEAD RECESSED FIT PANEL
• SWITCH MOUNTING PLATE
• STAINLESS HOSE 400MM
• STAINLESS HOSE 1200MM
• STAINLESS ELBOW 90 DEGREE

The JBA 250 series single compressor bracket enables a concealed fit for TJM heavy duty single compressor as well as optional fitment of the TJM 2.5L air tank.

JBA have also developed our range of pre-made kits including all hoses and joiners required for remote air and switch outlet mounting to make installation easier. The standard mounting options include

• - Inside the quarter panel with access next to the jack (KIT2)

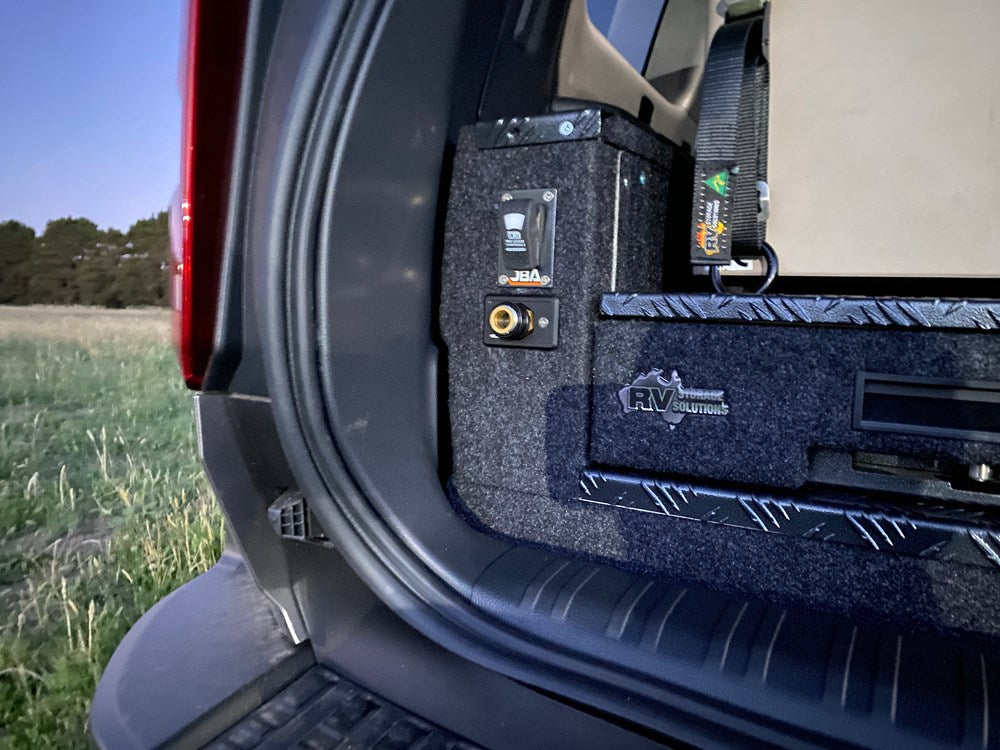

• - On a drawer system front fascia (KIT3)
• - Both kits also available with tank installation options also (KIT4 & KIT5)

A key aspect in the development of this bracket was ensuring that the storage pocket on the passenger side was retained. To achieve this, if fitting some of the optional kits including a quarter panel air/switch mount or a tank, the development of some new innovative parts was required including a new slim line mounting bracket for the TJM 2.5L tank (JBA-CB961TE) as well as a relay block relocation bracket when fitting a tank or quarter panel mount air/switch outlet option.

The end result is a brilliantly thought out mounting option which maximises all possible mounting configurations and is fully compliant with all of our newly approved ADR certification.

KEY FEATURES

• Proudly Australian made and owned
• ADR certified and compliant
• Made from 2mm powder coated steel
• Offers a neat installation solution

IMPORTANT FITTING NOTES

• Mounts behind the passenger side quarter panel.
• Rear storage compartment is retained and does not require removal.
• Jack location and mounting also retained with removal not required.
• Refer to the fitting instructions for suggested fit times and an overview of steps required.

PLEASE NOTE: Compressors & Air Tanks Sold Separately
