TOYOTA LANDCRUISER 200s KIT5 TJM SINGLE COMPRESSOR BRACKET & 5ltr AIR TANK MOUNT & DRAWER FRONT AIR OUTLET/SWITCH

CONTENTS

• SINGLE COMPRESSOR BRACKET (AIR TANK COMPATIBLE)

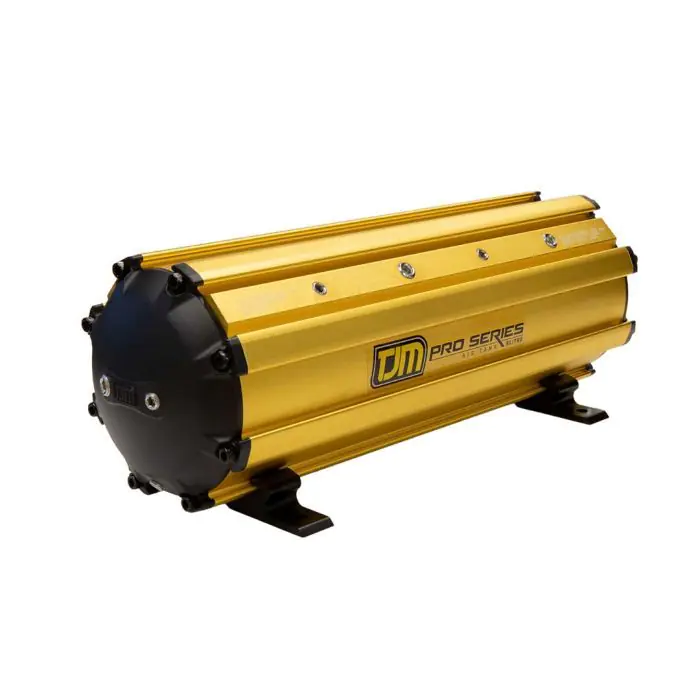

• TJM 5L AIR TANK BRACKET
• BULK HEAD RECESSED FIT PANEL
• SWITCH MOUNTING PLATE
• STAINLESS HOSE 800MM
• STAINLESS HOSE 1200MM
• STAINLESS ELBOW 90 DEGREE

The JBA 200 series single compressor bracket enables a concealed fit for the TJM heavy duty single compressor behind the drivers side rear quarter panel.

This bracket is compatible with JBA-CB301 Air tank bracket.

The reason JBA have developed two separate brackets is primarily to offer two pricing points. The JBA-CB200 (non tank compatible bracket) enables a lower price point for those who don't require a tank and aren't worried about slightly restricted access to the air outlet and switch.

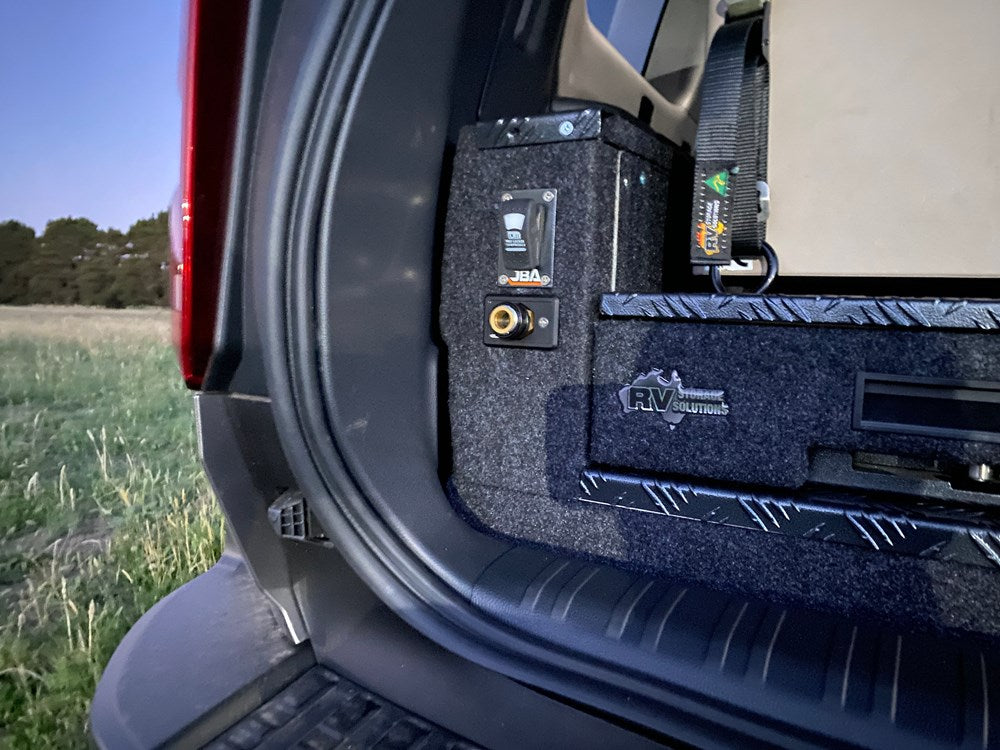

JBA-CB211 has been designed to enable the fitment of the TJM 5ltr air tank and a separate bracket has been designed (JBA-CB201-ASQ) to enable access to the air outlet and switch in this situation. The separate bracket (JBA-CB201-ASQ) also allows much better access to the air outlet and switch from the quarter panel if desired and can be fitted without a tank also.

Refer to the Air Outlet and Switch Mounting Chart to be completely sure which option will work best for your application.

The JBA single compressor bracket allows for the original TJM Maxi Blade fuse to be changed to an ANS-H fuses (supplied with JBA bracket). This allows for easier access to the fuse to check and replace if required.

JBA bracket features include

• Made from 2mm powder coated steel
• Stainless steel fasteners used
• No drilling required- all mounting points pick up on existing body points

Important Fitting Notes

• Suits all models 2007-2021 and all variants
• Mounts behind the drivers side quarter panel
• Suggested Fit Time- 2.5 hours plus wiring (allow additional 1-2 hours if drawers fitted to remove and re-fit)
• No drilling required- all mounting points pick up on existing body points
