Bluetooth® Battery Monitor
with High-Precision 500A Shunt

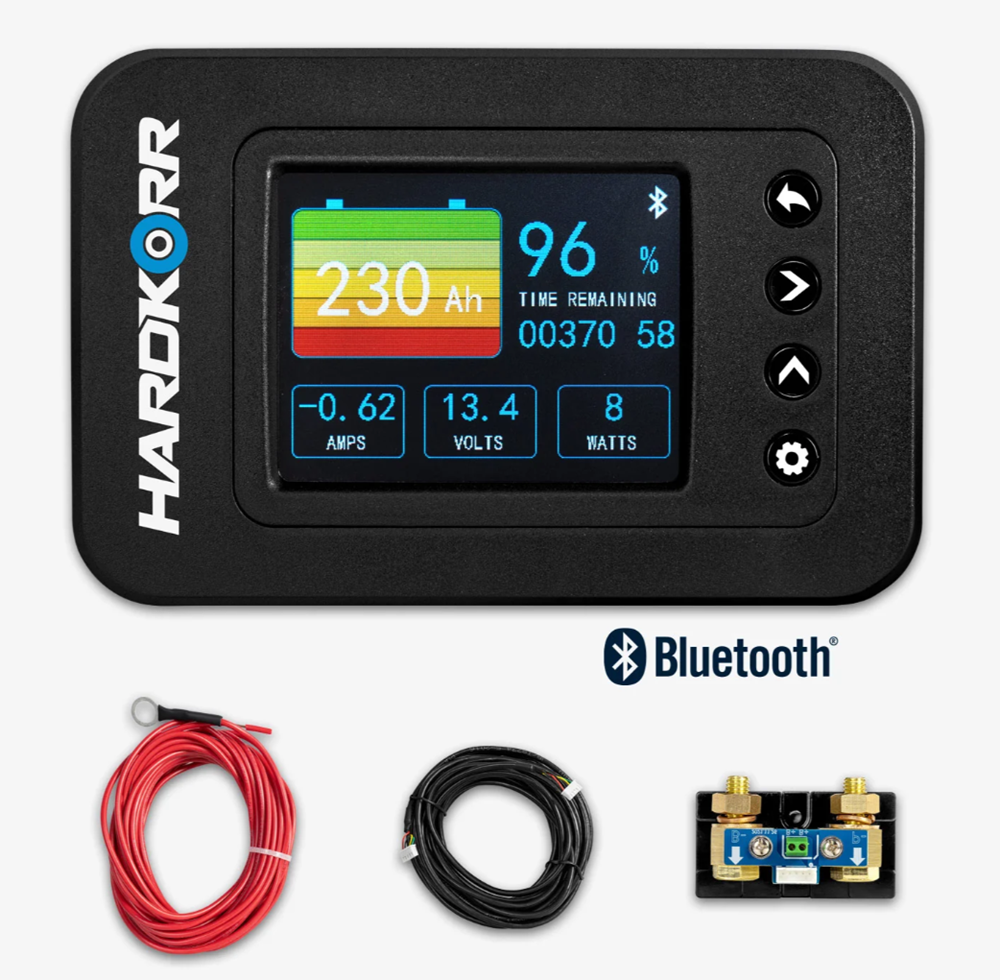

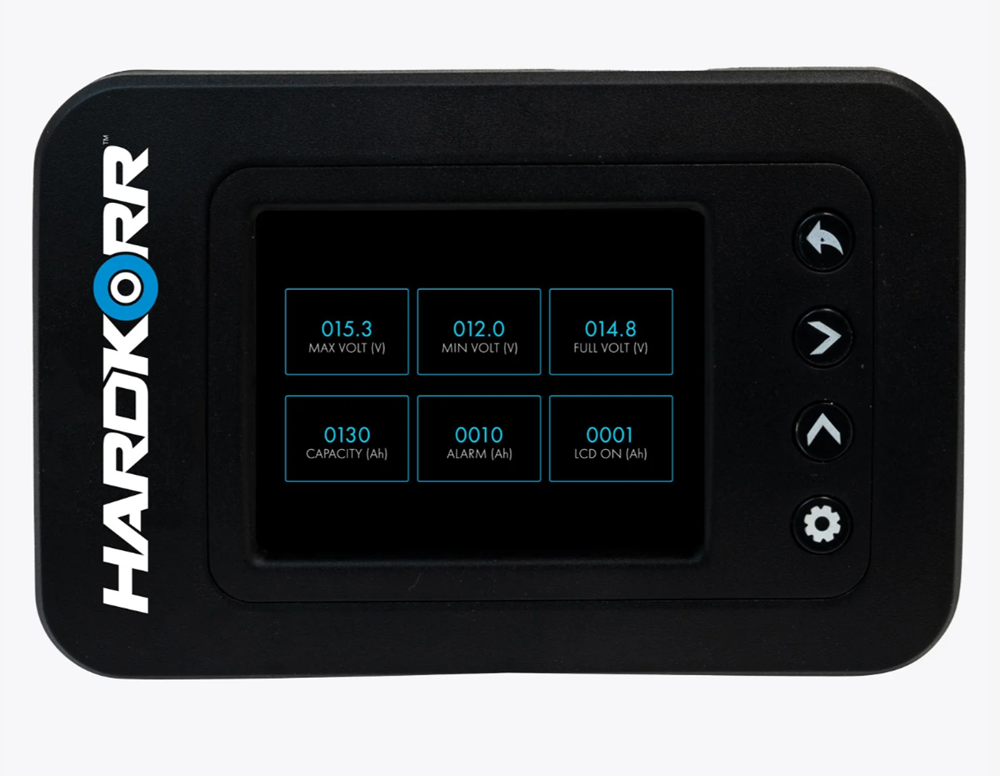

This battery monitor, also known as a coulometer, displays essential battery information such as battery voltage, live current draw (A) and charge level (Ah and %) through its full-colour LCD screen or by connecting your smartphone via Bluetooth®.
Using our free Bluetooth app, you can easily access all of the information from the battery monitor screen via your smartphone. You can also change settings from the app and wirelessly synchronise them with the monitor.
The most convenient way to monitor your deep-cycle batteries.
This battery monitor, also known as a coulometer, displays essential battery information through its full-colour LCD screen or by connecting your smartphone via Bluetooth®. By using a 500A shunt, highly accurate data is collected, such as charge level (Ah and %), live current draw (A), live voltage (V) and live watts (W). The monitor also includes an integrated alarm function to alert you when your battery is discharged to a set level and short circuit and reverse polarity protection technology.
It is suitable for all common battery types, including Lithium, AGM, Wet, Gel and Calcium.
SPECIFICATIONS:
| Working voltage | 10-120V DC |
|---|---|
| Battery capacity range | 10-1000Ah |
| Max. current | 500A peak / 350A continuous |
| Working power draw | |
| Accuracy | ±1% |
| Operating temperature | -20°C to 50°C |
| Weight | 110g |
| Dimensions (LCD screen) | 125(W) x 82(H) x 21(D) mm |
| Cut-out size | 106mm x 76mm |
| Certifications | EN62368-1:2014+A11:2017, EN50663:2017, RCM |
PACKAGE CONTENTS:
| 1x | LCD display module |
|---|---|

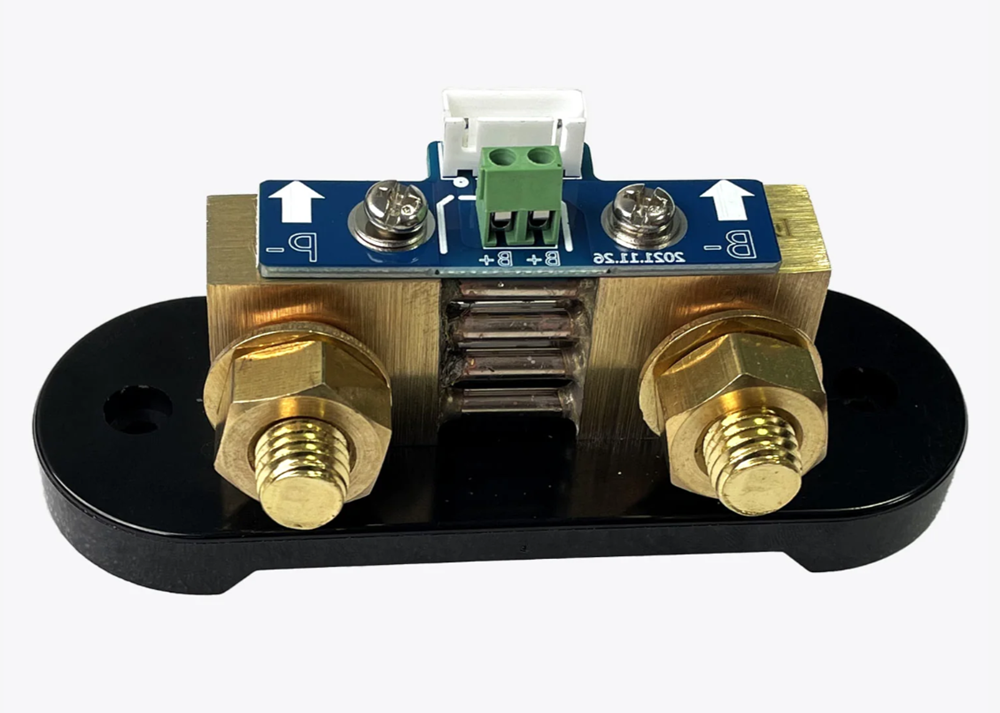

| 1x | 500A shunt |
| 1x | 6m shielded cable |
| 1x | 6m B+ wire |
| 1x | Mounting screws and pad |
| 1x | Mounting indicator card |
|
We may mark the shunt with a cut during the manufacturing process. This is done intentionally to ensure that internal resistance is accurate. |
|
