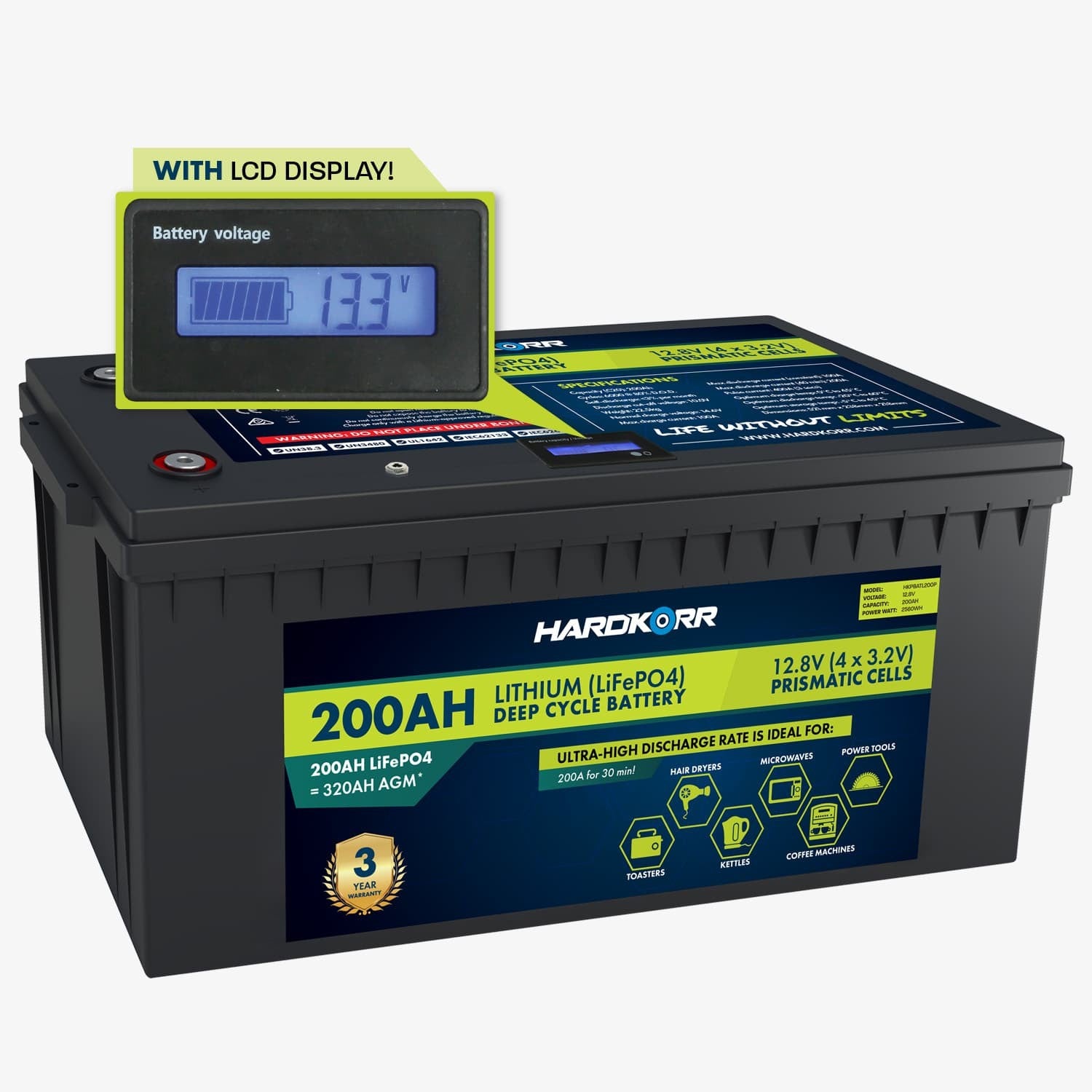

HARDKORR POWER 200AH LIFEPO4 BATTERY
HARDKORR POWER 200AH LIFEPO4 BATTERY
SKU:HKPBATL200P
Couldn't load pickup availability
200AH deep-cycle lithium batteries consist of two banks of four high quality aluminium-encased prismatic cells, each with a nominal voltage of 3.2v. The cells in each bank are connected in series, and the two banks are connected in parallel. Prismatic cells are lightweight, provide excellent vibration resistance and have far fewer possible points of failure than other types of battery cells.
These batteries use an advanced battery management system (BMS) to ensure an even energy balance between cells and allow the batteries to be connected in parallel or series (up to 4). The BMS contains an intelligent protection circuit module which protects against overcharge, over-discharge, short-circuit and over-temperature.
Our battery cells are protected by custom-molded EVA rubber cushioning. This cushioning offers protection against knocks and drops, and ensures better stability and longevity when the batteries are used in high-shock and high-vibration environments such as marine and vehicle applications.
These batteries have been tested and fully certified as compliant with the requirements of UN/DOT 38.3 standard for lithium cells and batteries.
Why upgrade to lithium?
- Long cycle life:Â lasts up to 10x longer than Sealed Lead Acid (SLA) batteries
- More usable capacity:Â safely use up to 70% of usable capacity and 99% in an emergency (vs 50%/70% for SLA)
- Light weight:Â About half the weight of an equivalent SLA battery
- Environmentally friendly:Â Non-toxic, contains no acid, can be installed in any direction
SPECIFICATIONS
| Nominal voltage | 12.8V |
|---|---|
| Capacity (C20) | 200Ah |
| Max series/parallel config | 4S/4P |
| Normal charge voltage | 14.6V |
| Float voltage | 14.0V |
| Discharge cut-off voltage | 10.0V |
| Charge temp | 0°C-45°C |
| Discharge temp | -20°C-60°C |
| Self-discharge | |
| Initial impedance | Less than 20mΩ |
| Weight | 27.0kg |
| Max charge current | 100A |
| Max discharge current (constant) | 100A (0.5C) |
| Max discharge current (30 min) | 200A* |
| Max discharge current (2 min) | 250A* |
| Pulse current (3 sec) | 400A* |
| Dimensions | 521(L) x 238(W) x 218(H) mm |
| Certifications | UN/DOT 38.3, CE, RoHS |
* Note on discharge current: if you connect multiple batteries in parallel, the maximum discharge current is multiplied by the number of batteries in the array. For example, if you connect two of these batteries in parallel you can discharge at 400A for 30 minutes.
