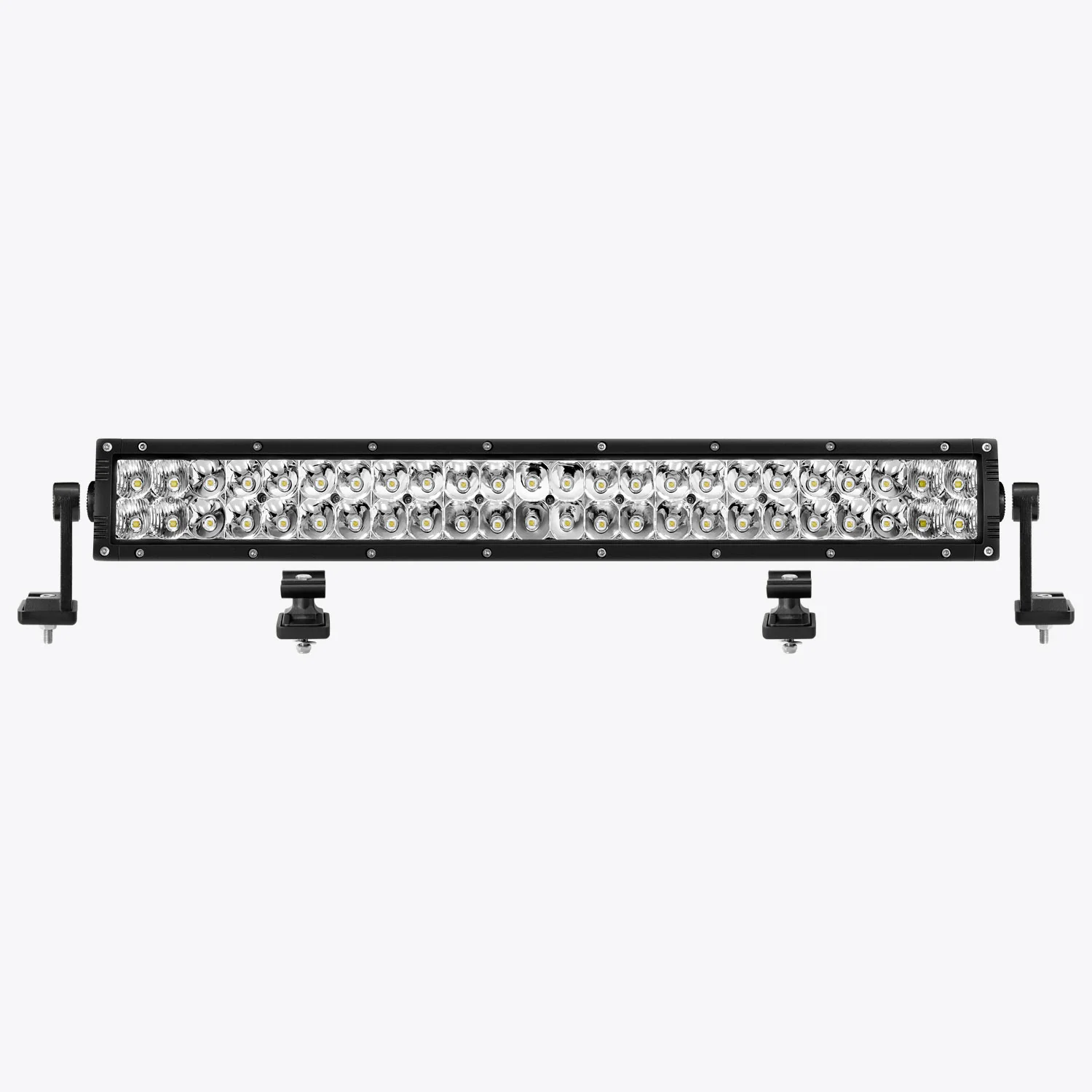

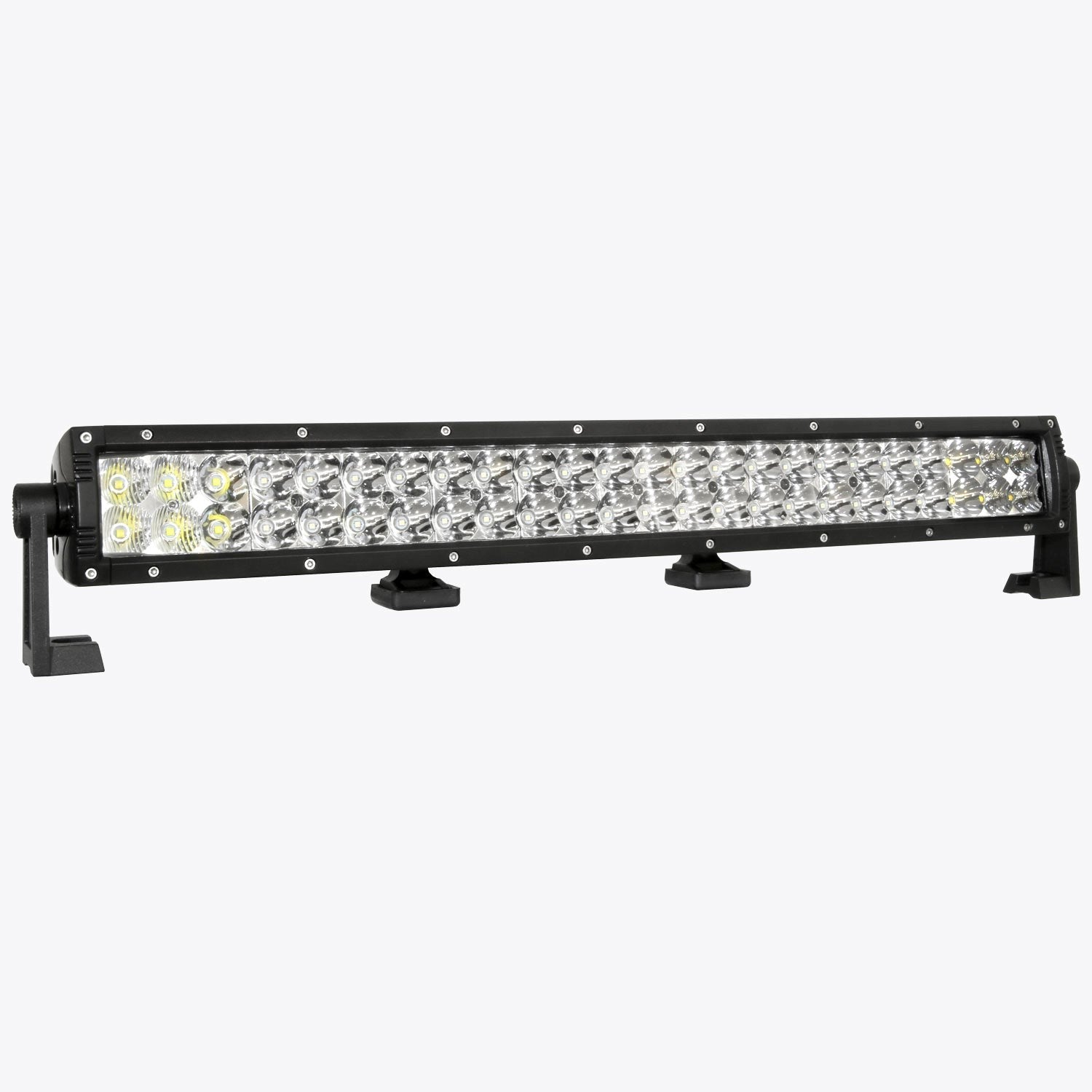

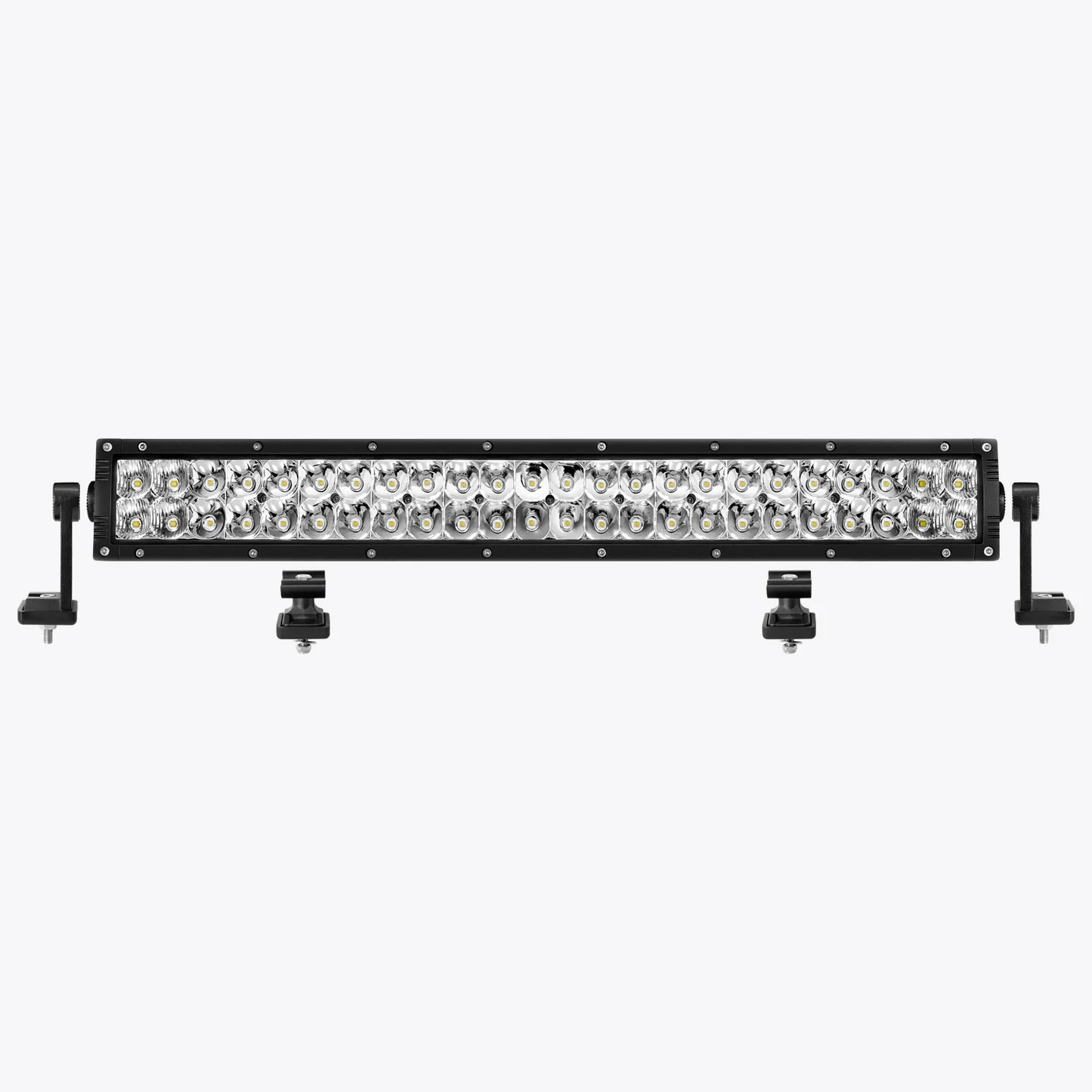

HARDKORR 22IN 168W XDD GEN4 SERIES DOUBLE ROW LED LIGHT BAR

HARDKORR 22IN 168W XDD GEN4 SERIES DOUBLE ROW LED LIGHT BAR

Regular price $339.00 AUD
Regular price Sale price $339.00 AUD
Sale Contact us for availability

SKU:XDD650-G4

The LED light bars that took Australia by storm are now brighter and more efficient than ever.

Hardkorr dual row LED light bars have always been the favourite of professional drivers and people who drive on roads inhabited by kangaroos and other wildlife. Our dual-chip hybrid technology, first introduced in our GEN3 series bars in 2016, produces a light beam that is unparalleled in width and evenness. The output of these light bars fills your entire field of view with light, ensuring that you can spot hazards that are not just located in front of the vehicle, but off to the sides of the road as well.

The XD-GEN4 series is the latest update to this range and represents another leap forward in LED technology. We have upgraded our GEN3 series to utilise the very latest OSRAM and CREE LED chips, and our engineers have tweaked the circuitry and reflector geometry to suit.

The result is an even wider and longer beam, with no black spots or hot spots.

The 22″ XDD650-G4 fits neatly inside most popular bullbars on small to medium 4wds and utes. It produces a strong 1 lux @ 650m forward beam as well as brightly lighting both sides of the road, whilst consuming substantially less power than a set of LED spotlights.

SPECIFICATIONS

Materials 6063 aluminium housing Lexan® polycarbonate lens
LED Manufacturer OSRAM® (spot LEDs) / CREE® (flood LEDs)
LED Number 36 x 3W OSRAM® 12 x 5W CREE®
Beam type GEN4 hybrid flood & spot
Beam throw 1 lux @ 650m
Output 16,800 lumens
Ingress Protection IP68

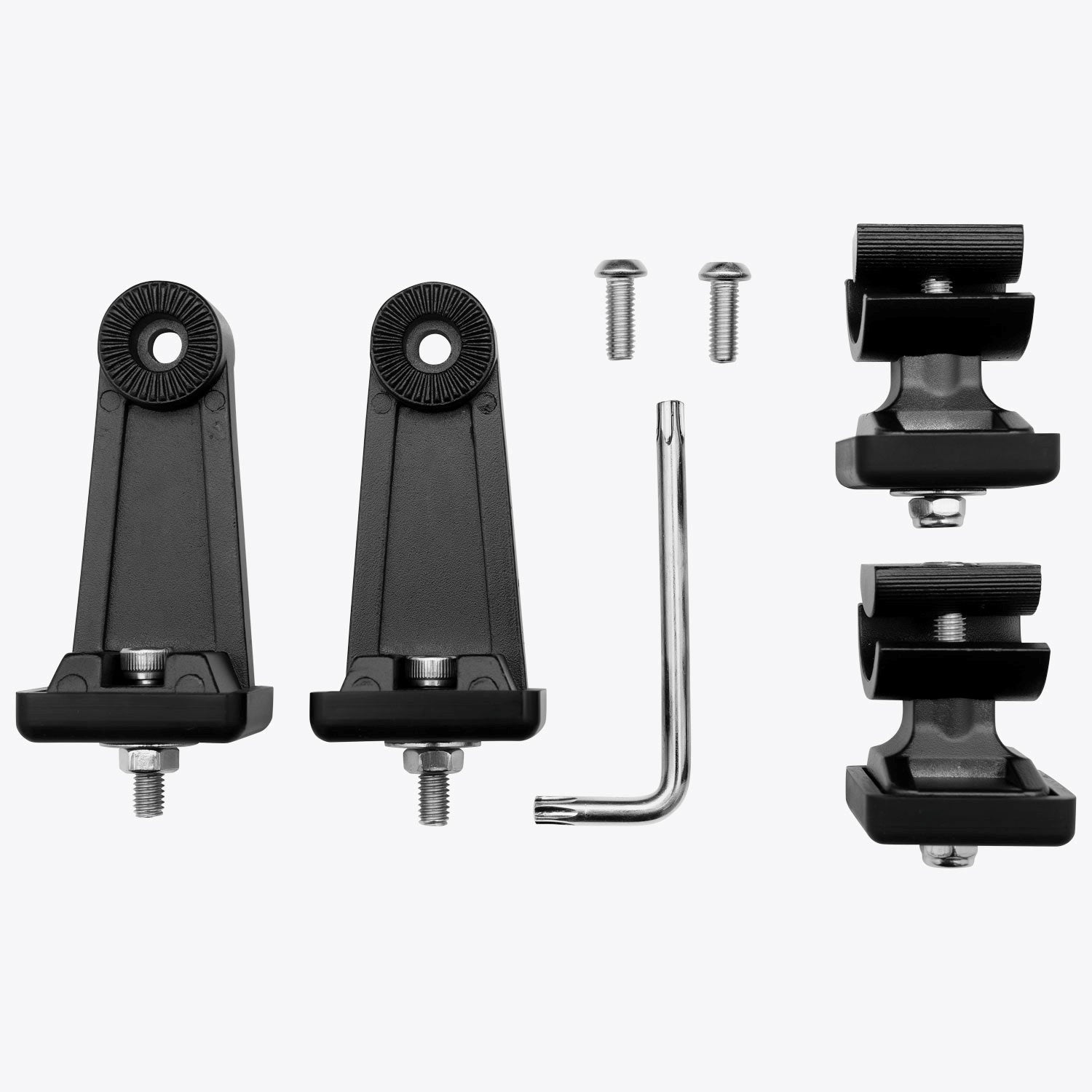

Dimensions 559mm (w) x 75mm (d) x 85mm (h w/sliding legs) / 105mm (h w/end-mount legs)
Weight 3.1kg
Operating Voltage 10 - 30v DC
Current 10.6A @ 13.5V / 5.3A @ 24V
Colour Temp 6000K
LED Lifespan 50,000+ hours
Certifications CE, RoHS, C-Tick, CISPR15
