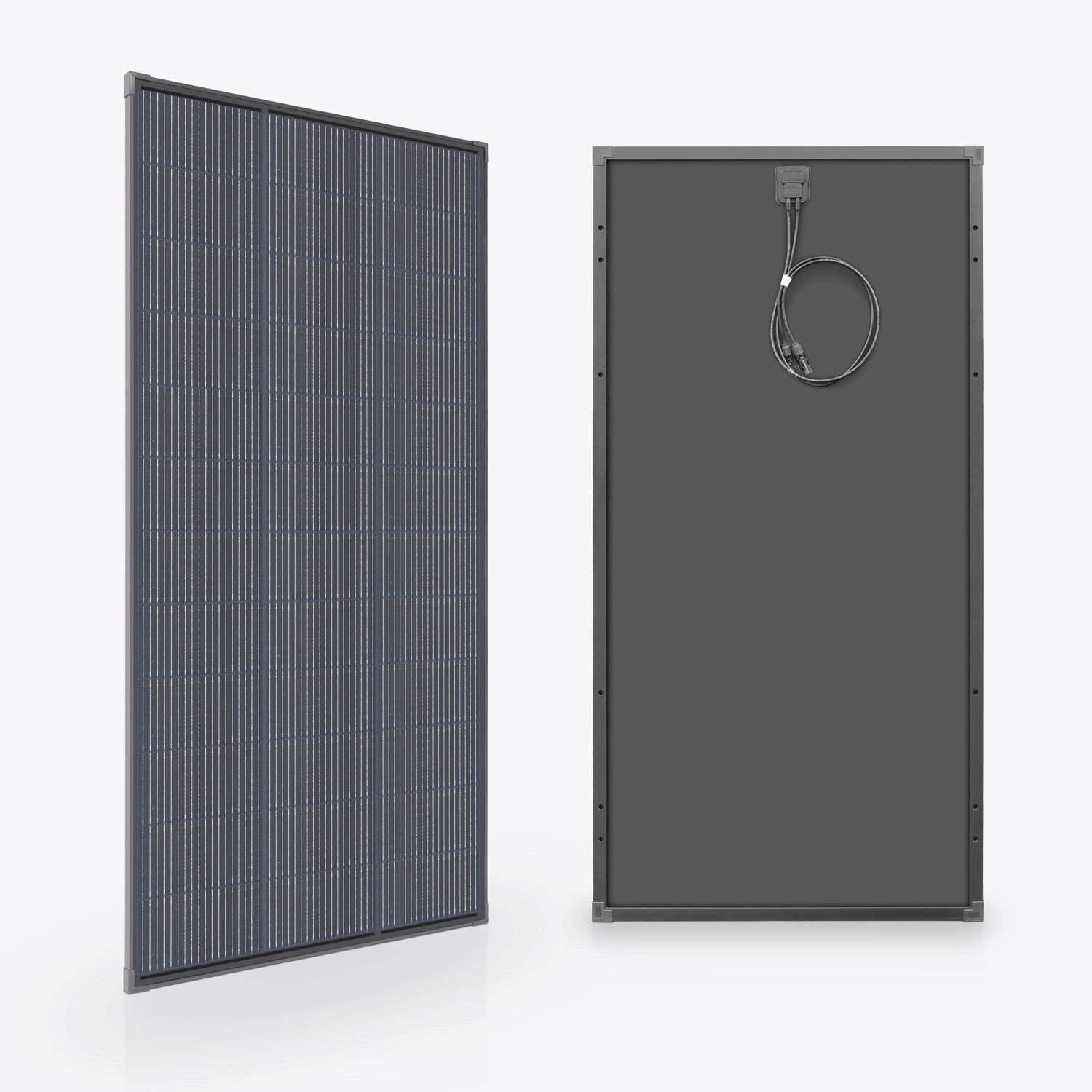

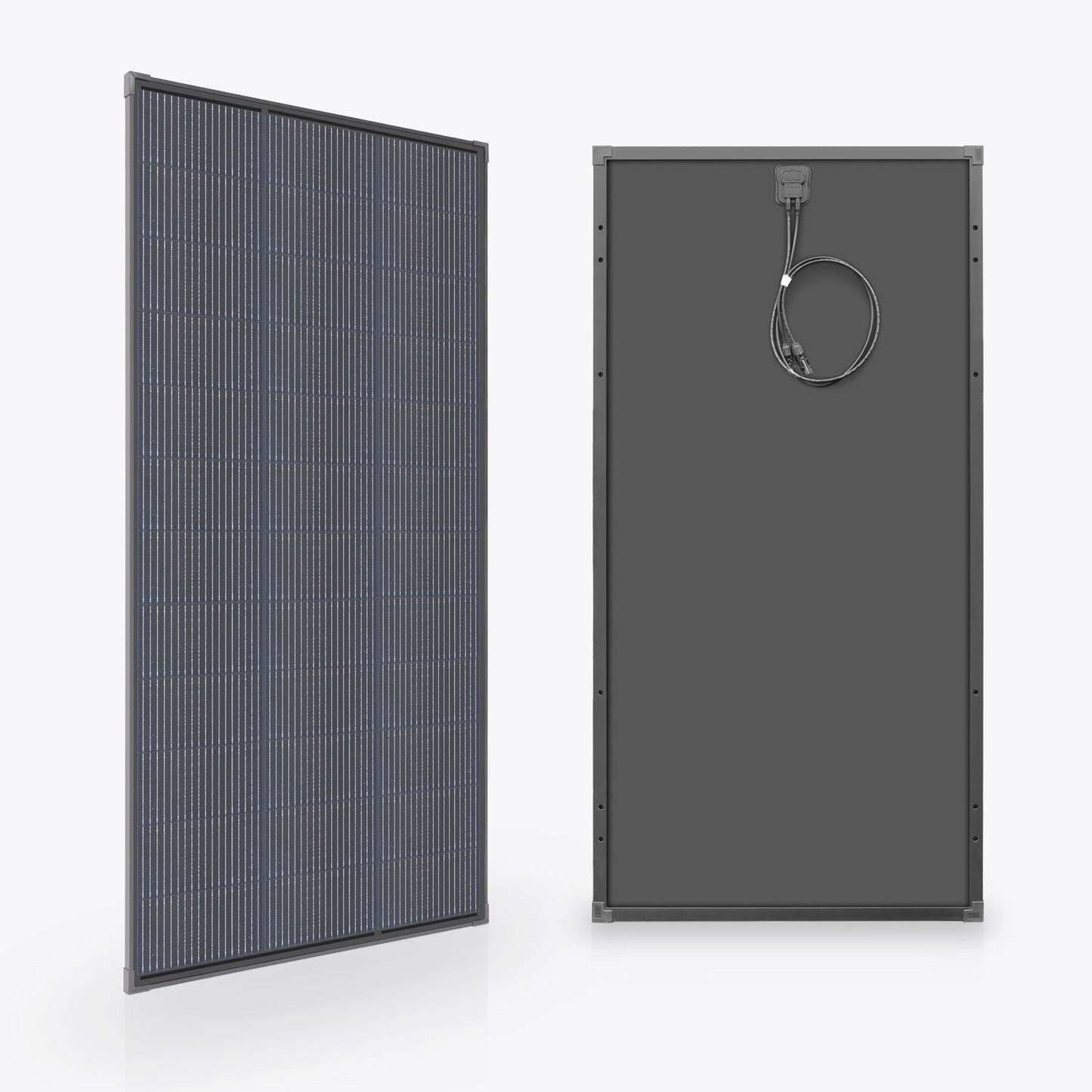

HARDKORR 170W FIXED SOLAR PANEL 664 X 1320

HARDKORR 170W FIXED SOLAR PANEL 664 X 1320

Regular price $199.00 AUD
Regular price Sale price $199.00 AUD
Sale Contact us for availability

SKU:HKPSOLF170

Our high-quality 170w fixed solar panels will fit neatly on the roof of a 4wd, caravan, camper trailer or boat. Being only 17mm high, they are aerodynamic and weigh about 30% less than regular 30mm high fixed panels.

The A-grade monocrystalline solar cells are protected by 3.2mm tempered low-iron glass, which is optically clear and provides high impact resistance against hail, stones and accidental knocks. The all-black frame, cells and substrate look incredible on any vehicle.

The panels come with a 0.8m cable terminated with industry-standard MC4 connectors, which are waterproof and will not come apart once connected. We have also developed matching mounting brackets to make it easy to fix your panels in place.

With a 10 year warranty backed by Hardkorr’s reputation for quality, you can’t go wrong with these solar panels. Start powering your adventure from the sun for free today!

KEY FEATURES

  • 3.2mm tempered low-iron glass: optically clear with high impact resistance
  • High-efficiency A-grade monocrystalline solar cells: for better performance & longer lifespan
  • Black frame, cells and substrate: looks great on any vehicle
  • 17mm anodized aluminium frame: 30% lighter than regular solar panels
  • High-quality MC4 plugs w/0.8m cable: ensures a secure, waterproof connection

NOTE: You will need a regulator to connect this panel to your system.

SPECIFICATIONS

Materials

Anodized aluminium frame
A-grade monocrystalline solar cells
3.2mm tempered low-iron glass covering

Wattage

170W

Working max. voltage

21V

Working max. current

8.1A

Open circuit voltage

23.4V

Short circuit current

9.55A

Solar cell efficiency

22.50%

Dimensions

1320(L) x 664(W) x 17(H) mm

Weight

8.6kg

Connector type

MC4

Max. system voltage

1000V

Operating temperature

-40°C to 85°C

Certifications

CE, RoHS, C-Tick
