Generator / General Purpose Slide
Generator / General Purpose Slide
SKU:EL-AP-2
Couldn't load pickup availability

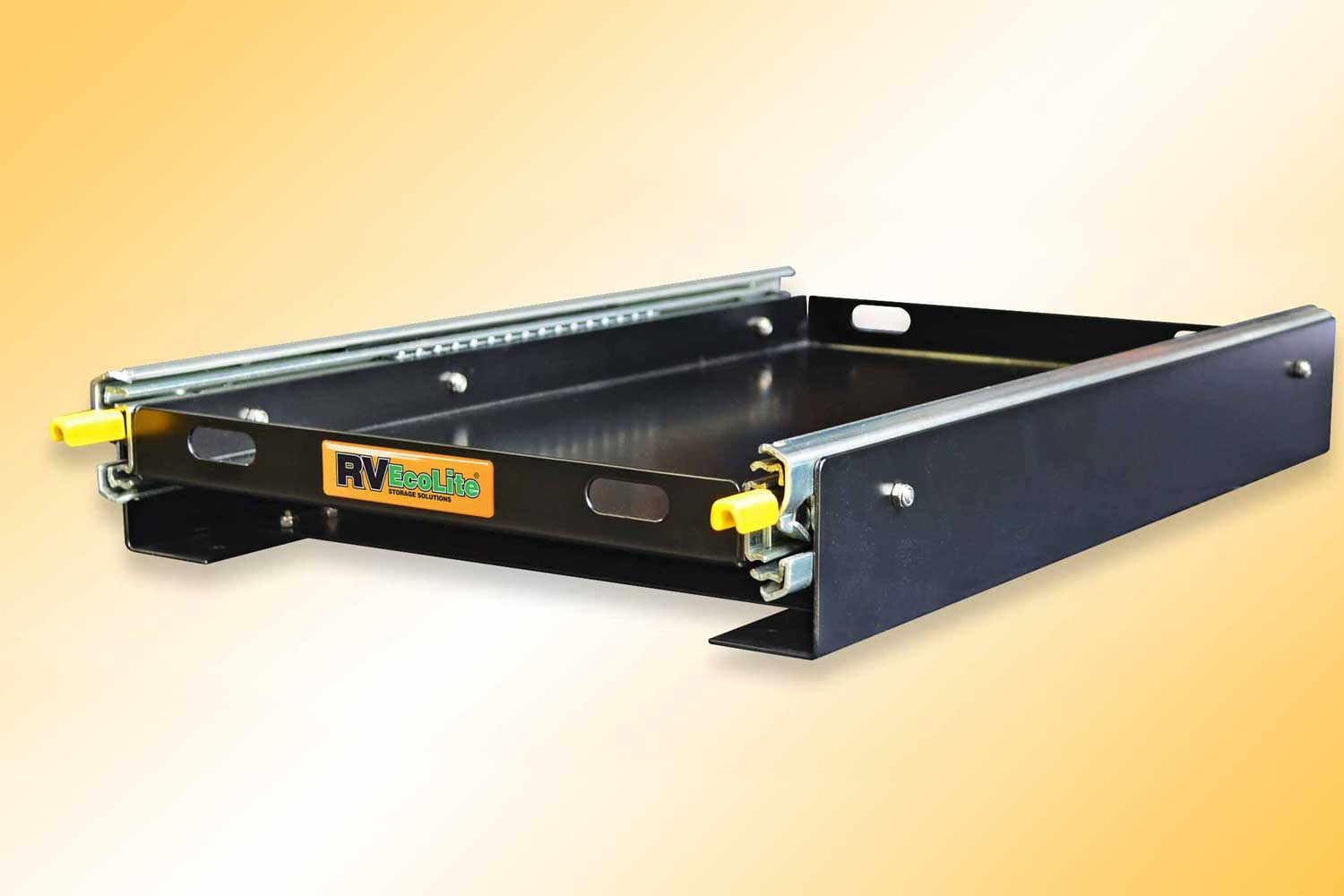

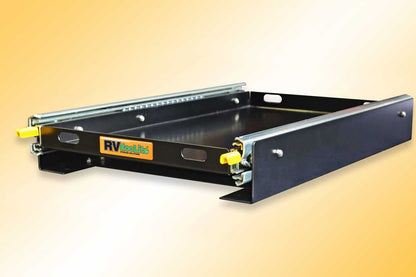

EcoLite AP-2 General Purpose Slide

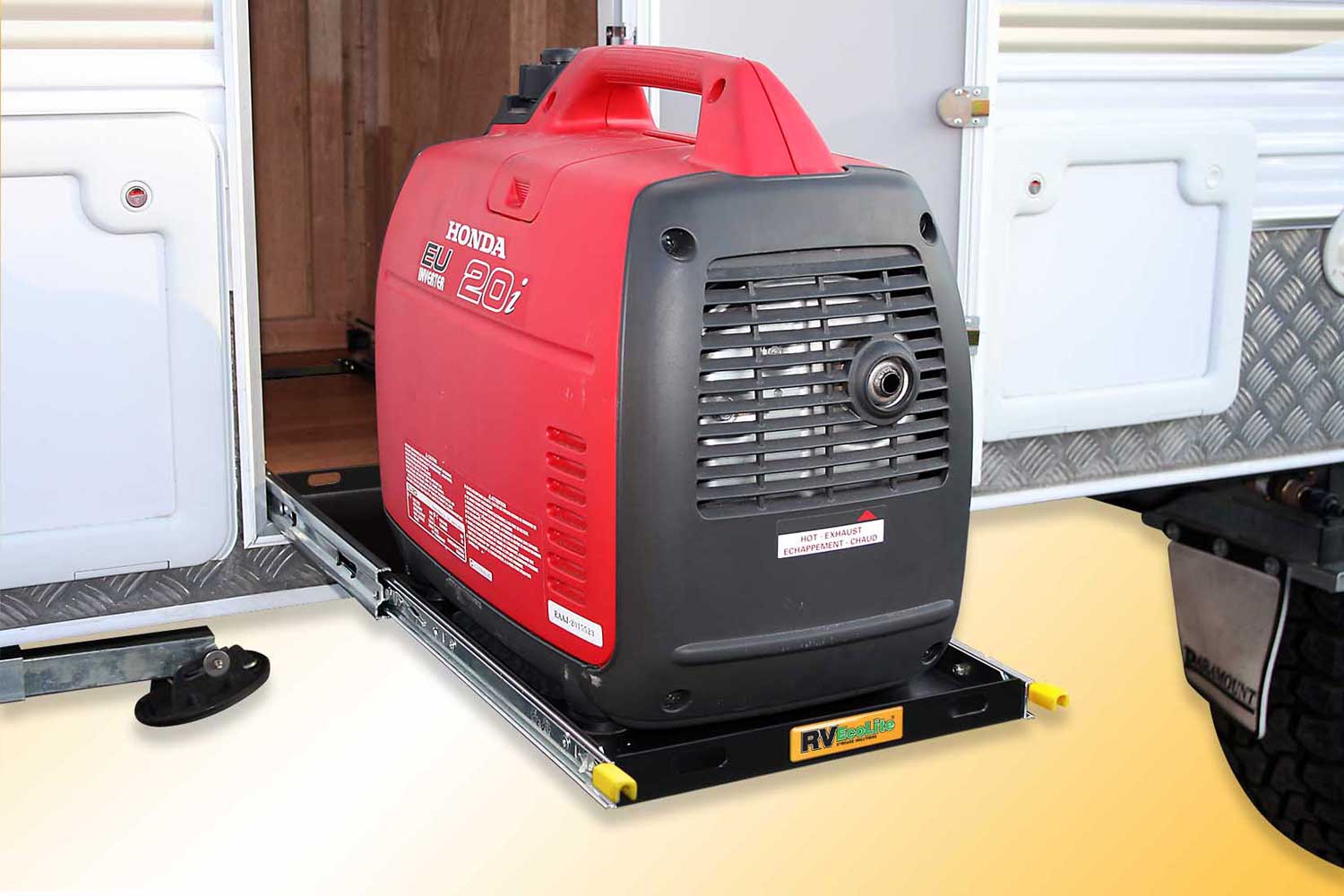

Our smallest slide is still capable of carrying the Honda 1 & 2 gen sets and has the Honda generator mounting holes already punched in the slide tray. Constructed from 1.6mm powder coated steel and rated to carry 125kg of evenly distributed weight, the TWIN LOCKING RUNNERS feature a built in lock-in / lock-out mechanism and full extension for maximum clearance from the side of your van or RV. This is an important feature as when the gen set is started, the slide stays put. There is no movement and an accidental knock will not cause any injury as its locked in place.
-
Door opening required for slide is 330mm. NOTE: Also check if your opening will take the width of your intended usage product.
This great little All Purpose budget priced slide unit is ideal for many lighter duty applications. We recommend using our heavy duty Travel Lock slides for applications where they will be subject to tough off road treatment or semi commercial usage.
NOTE:Â HONDA 1 gen sets require angle brackets for direct mounting to slide tray. Please specify at time of ordering.
External O/A: L530 x W342 x H80mm (external – width includes nuts protruding from sides)
Internal Tray:Â L496 x W284mm x H30mm (internal tray dimensions)
Tray height from mounting surface:Â 32mm
WEIGHT:Â 6.5kg
NOTE: Warranty is void if your Baby Q BBQ or Generator is not tightly secured with correct brackets or tie down straps
